SFV8R-4STBE1HLF

Active

Amphenol ICC (FCI)

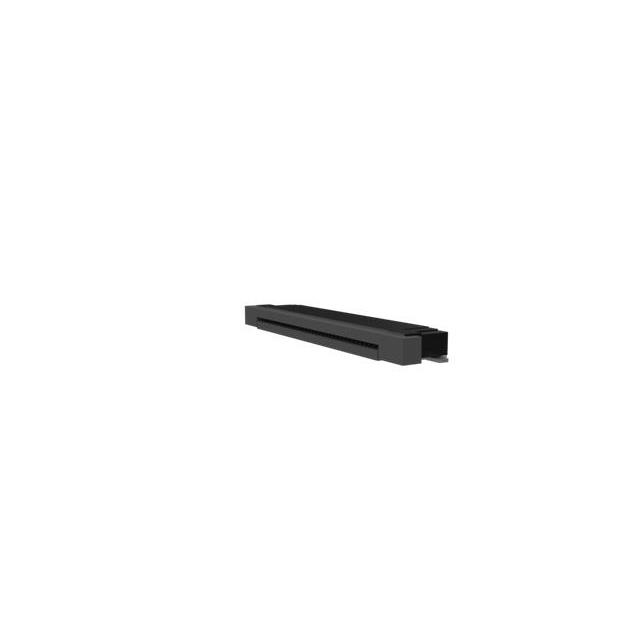

CONN FPC TOP 8POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SFV8R-4STBE1HLF +1

SFV8R-4STBE1HLF

Active

Amphenol ICC (FCI)

CONN FPC TOP 8POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet SFV8R-4STBE1HLF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV8R-4STBE1HLF

Actuator Color	Beige
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled, Halogen Free
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV8R Series

Part	Cable End Type	FFC, FCB Thickness [z]	Contact Finish	Pitch [x]	Pitch [x]	Flat Flex Type	Housing Color	Mounting Type	Termination	Height Above Board	Height Above Board	Connector/Contact Type	Locking Feature	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Voltage Rating	Contact Material	Current Rating (Amps)	Actuator Color	Number of Positions	Mating Cycles	Housing Material	Features	FFC, FCB Thickness
Amphenol ICC (FCI) SFV8R-2STAE1HLF	Straight	0.3 mm 0.33 mm	Gold	0.5 mm	0.02 in	FFC FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Top	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	Phosphor Bronze	0.5 A	Brown	8	20	Polyamide (PA) Nylon Glass Filled
Amphenol ICC (FCI) SFV8R-1STE1LF	Straight Tapered	0.3 mm 0.33 mm	Tin	0.5 mm	0.02 in	FFC FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Bottom	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	Phosphor Bronze	0.5 A	Brown	8		Polyamide (PA) Nylon Glass Filled	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV8R-1STE1	Straight Tapered	0.3 mm 0.33 mm	Tin Alloy	0.5 mm	0.02 in	FFC FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Bottom	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	Phosphor Bronze	0.5 A	Brown	8	20	Polyamide (PA) Nylon Glass Filled	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV8R-4STBE1HLF	Tapered		Gold	0.5 mm	0.02 in	FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Top	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	Phosphor Bronze	0.5 A	Beige	8	20	Polyamide (PA) Nylon Glass Filled Halogen Free		0.3 mm
Amphenol ICC (FCI) SFV8R-1STBE1HLF	Tapered		Gold	0.5 mm	0.02 in	FFC FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Bottom	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	Phosphor Bronze	0.5 A	Beige	8	20	Polyamide (PA) Nylon Glass Filled Halogen Free		0.3 mm
Amphenol ICC (FCI) SFV8R-4STE1HLF	Notched or Tabbed		Tin	0.5 mm	0.02 in	FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Top	Flip Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	50 V	Phosphor Bronze	0.5 A	Black	8	20	Polyamide (PA) Nylon Glass Filled Halogen Free	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) SFV8R-2STE1	Straight Tapered	0.3 mm 0.33 mm	Tin Alloy	0.5 mm	0.02 in	FFC FPC	Black	Surface Mount Right Angle	Solder	1.8 mm	0.071 in	Contacts Top	Slide Lock	UL94 V-0	105 ░C	-55 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	Phosphor Bronze	0.5 A	Brown	8	20	Polyamide (PA) Nylon Glass Filled	Solder Retention Zero Insertion Force (ZIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.59
		10	$ 0.45
		25	$ 0.41
		50	$ 0.37
		100	$ 0.35
		250	$ 0.31
		500	$ 0.29
		1000	$ 0.27
	Digi-Reel®	1	$ 0.59
		10	$ 0.45
		25	$ 0.41
		50	$ 0.37
		100	$ 0.35
		250	$ 0.31
		500	$ 0.29
		1000	$ 0.27
	Tape & Reel (TR)	3000	$ 0.24
		6000	$ 0.21
		9000	$ 0.21
		15000	$ 0.20
		21000	$ 0.20
		30000	$ 0.19

Description

General part information

SFV8R Series

8 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
