DMTH8001STLWQ-13
ActiveDiodes Inc
80V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI1012-8 (TOLL)
Deep-Dive with AI
Search across all available documentation for this part.
DMTH8001STLWQ-13
ActiveDiodes Inc
80V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI1012-8 (TOLL)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMTH8001STLWQ-13 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 270 A |
| Drain to Source Voltage (Vdss) | 80 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 138 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 8894 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

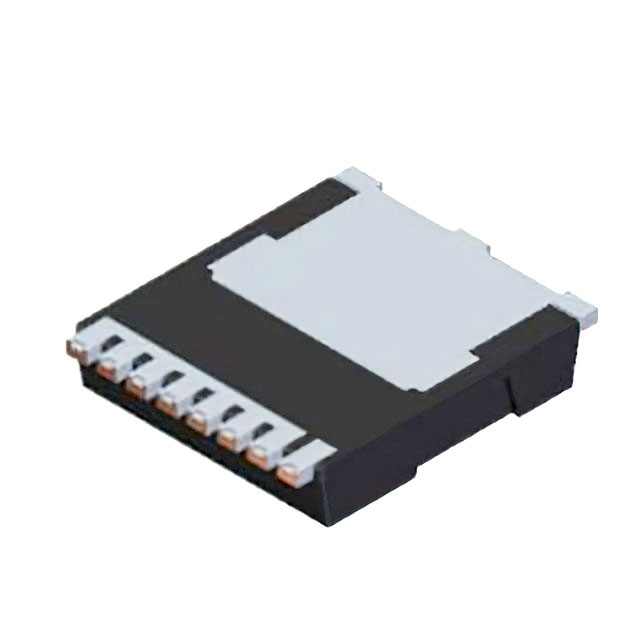

| Package / Case | 8-PowerSFN |
| Power Dissipation (Max) | 6 W, 250 W |
| Rds On (Max) @ Id, Vgs | 1.7 mOhm |
| Supplier Device Package | POWERDI1012-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.73 | |
| 10 | $ 3.13 | |||
| 100 | $ 2.54 | |||
| 500 | $ 2.48 | |||
| Digi-Reel® | 1 | $ 3.73 | ||
| 10 | $ 3.13 | |||
| 100 | $ 2.54 | |||
| 500 | $ 2.48 | |||
| Tape & Reel (TR) | 1500 | $ 2.48 | ||
Description
General part information
DMTH8001STLWQ Series
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in: motor controls, DC-DC converters, and power managements.
