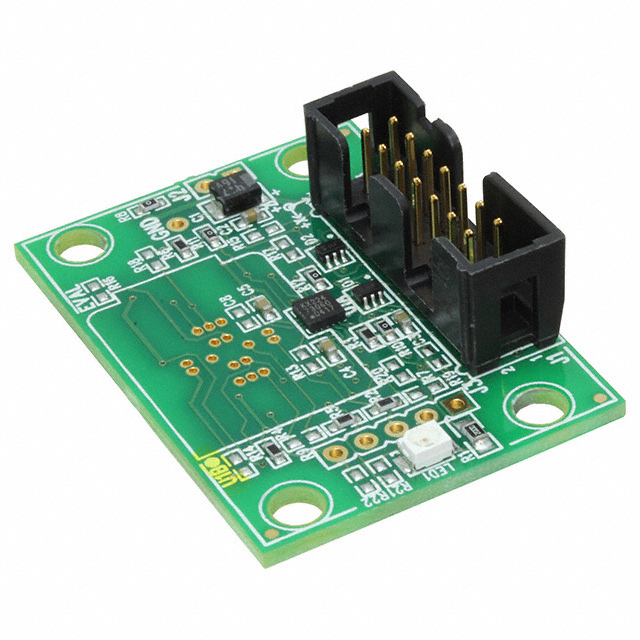

KX224-1053-EVB0B0

Obsolete

Kionix Inc.

EVAL BOARD FOR KX224-1053

Search across all available documentation for this part.

Obsolete

Kionix Inc.

EVAL BOARD FOR KX224-1053

Technical Specifications

Parameters and characteristics commom to parts in this series

MEDIUM-G TRI-AXIS, USER SELECTAB

Part	Sensitivity (LSB/g)	Bandwidth	Output Type	Features	Package / Case	Axis [z]	Axis [y]	Axis [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Acceleration Range	Acceleration Range [Max]	Acceleration Range [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Contents	Sensor Type	Interface	Supplied Contents	Sensing Range	Sensing Range [Max]	Sensing Range [Min]	Utilized IC / Part
Kionix Inc. KX224-1053	1024 LSB/g, 4096 LSB/g	800 Hz	I2C, SPI	Selectable Scale	16-LGA	Z	Y	X	16-LGA (3x3)	85 °C	-40 °C	Digital	16 g, 32 g	8 g	-8 g	Surface Mount	3.6 V	1.71 V
Kionix Inc. KX224-1053-SR	1024 LSB/g, 4096 LSB/g	800 Hz	I2C, SPI	Selectable Scale	16-LGA	Z	Y	X	16-LGA (3x3)	85 °C	-40 °C	Digital	16 g, 32 g	8 g	-8 g	Surface Mount	3.6 V	1.71 V
Kionix Inc. KX224-1053-EVB0B0																	3.6 V	1.71 V	Board(s)	Accelerometer, 3 Axis	I2C, Serial, SPI	Board(s)	16 g, 32 g	8 g	-8 g	KX224-1053

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

KX224-1053 - Accelerometer, 3 Axis Sensor Evaluation Board

Technical documentation and resources

No documents available
