031-6683

Active

AMPHENOL RF

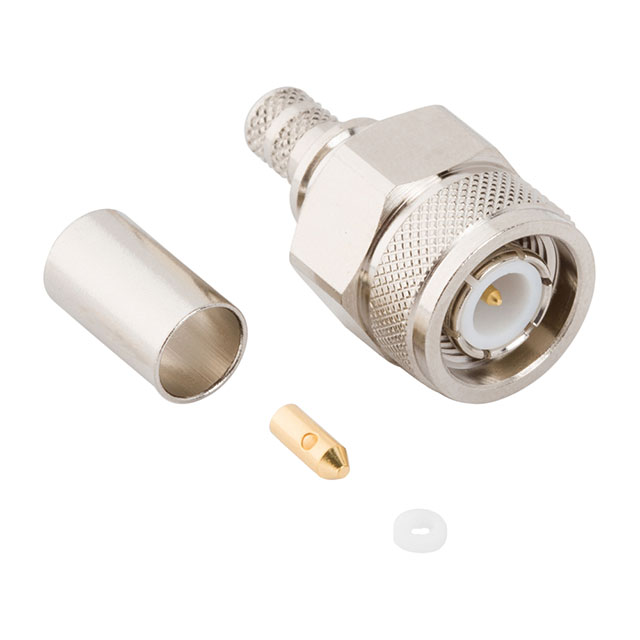

TNC STRAIGHT CRIMP PLUG TIMES LM

Search across all available documentation for this part.

Active

AMPHENOL RF

TNC STRAIGHT CRIMP PLUG TIMES LM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	031-6683	031-66 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	LMR-240	LMR-240
Center Contact Material	Brass, Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	TNC	TNC
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder Cup, Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	130 °C	130 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Crimp	Solder, Crimp

TNC STRAIGHT JACK, SOLDER CUP, R

Part	Housing Color	Contact Termination	Connector Style	Ingress Protection	Connector Type	Dielectric Material	Center Contact Material	Body Material	Mounting Feature	Center Contact Plating	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Frequency - Max [Max]	Mating Cycles	Shield Termination	Impedance	Body Finish	Cable Group	Mounting Type
AMPHENOL RF 031-6600	Silver	Solder Cup	TNC	IP67 - Dust Tight, Waterproof	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	Bulkhead - Rear Side Nut	Gold	1	-65 ░C	165 °C	1 Connector, 1 Lockwasher, 1 Nut	6000 MHz	500	Solder	50 Ohms	Nickel
AMPHENOL RF 031-6683-EE	Natural	Crimp	TNC	IP67 - Dust Tight, Waterproof	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass		Gold	1	-40 °C	130 °C		6000 MHz	500	Crimp	50 Ohms	Nickel	LMR-240	Free Hanging (In-Line)
AMPHENOL RF 031-6683	Silver	Solder	TNC	IP67 - Dust Tight, Waterproof	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass	Brass		Gold	1	-40 °C	130 °C		6000 MHz	500	Crimp	50 Ohms	Nickel	LMR-240	Free Hanging (In-Line)
