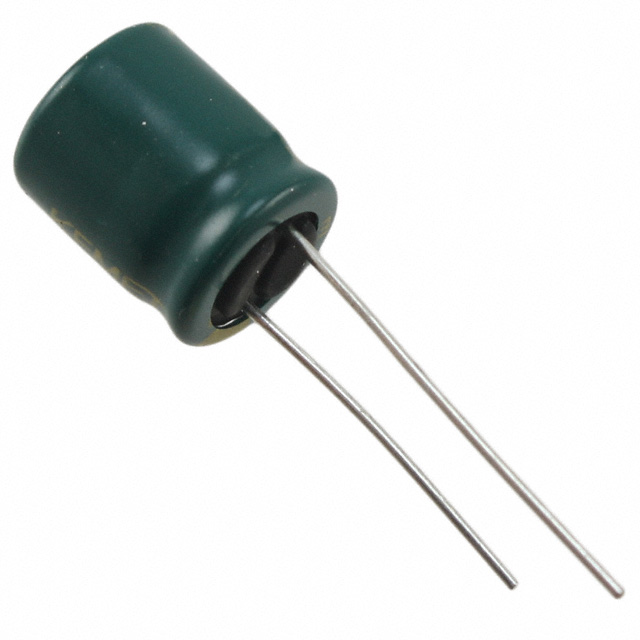

ESC477M035AH4AA

Active

KEMET

CAP ALUMINUM LYTIC 470UF 35V 20% (10 X 20MM) RADIAL 5MM 0.039 OHM 1.3A 3000H 105°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 470UF 35V 20% (10 X 20MM) RADIAL 5MM 0.039 OHM 1.3A 3000H 105°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	ESC477M035AH4AA

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	39 mOhm
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Impedance	39 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	1.17 A
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	35 V

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.	Impedance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max)	Ripple Current @ High Frequency
KEMET ESC477M035AH4AA	39 mOhm	35 V	5 mm	0.197 in	21 mm	0.827 "	Polar	3000 Hrs	39 mOhms	General Purpose	-40 °C	105 ░C	Radial Can	470 µF	10 mm	0.394 in	20 %	1.17 A	Through Hole
KEMET ESC477M016AH1AA	85 mOhm	16 V	5 mm	0.197 in		0.531 "	Polar	2000 Hrs	85 mOhms	General Purpose	-40 °C	105 ░C	Radial Can	470 µF	10 mm	0.394 in	20 %	720 mA	Through Hole	13.5 mm	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 39mOhm @ 100kHz 3000 Hrs @ 105°C
