2-1102600-5
ActiveTE Connectivity AMP Connectors

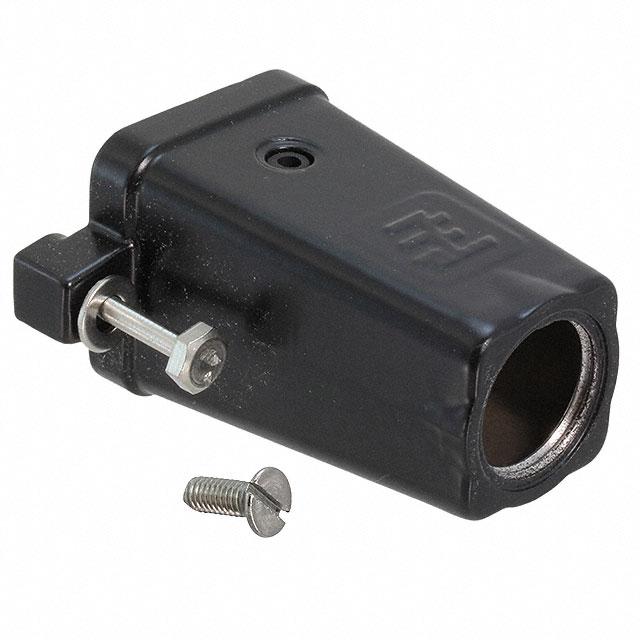

CONN HOOD TOP ENTRY SZ1 PG11
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1102600-5
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ1 PG11
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102600-5 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Corrosion Coating |
| Housing Material | Aluminum |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Size | 1 Gallon |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [x] | 2.008 in |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [z] | 2.224 in |
| Size / Dimension [z] | 56.5 mm |
| Style | Top Entry |
| Thread Size | PG11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102600 Series
CONN HOOD TOP ENTRY SZ1 PG11
| Part | Housing Material | Size | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Style | Thread Size | Housing Finish | Ingress Protection | Housing Color | Lock Location | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102600-5 | Aluminum | 1 Gallon | 51 mm | 2.008 in | 2.224 in | 1.26 in | 32 mm | 56.5 mm | Top Entry | PG11 | Corrosion Coating | IP68 - Dust Tight, Waterproof | Black | Screw Locks on Hood | Hood |
Description
General part information
1102600 Series
Hood Connector Top Entry PG11 1 IP68 - Dust Tight, Waterproof
