C3114.41.86

Active

Prysmian Group

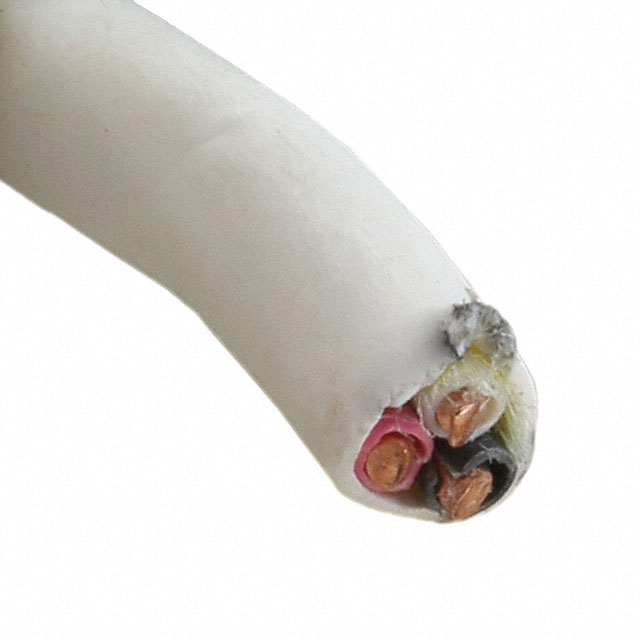

CABLE 3COND 18AWG NATURAL 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 18AWG NATURAL 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C3114.41.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	3.84 mm
Jacket (Insulation) Diameter [diameter]	0.151 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Control, Communication
Voltage	150 V
Wire Gauge	18 AWG

Part	Features	Length [x]	Length [x]	Conductor Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Ratings	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Wire Gauge	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Usage	Jacket Color
Prysmian Group C3114.41.02	Rip Cord	100 ft 500 '	30.5 m 152.4 m	Copper Bare	Multi-Conductor	0.015 in	0.381 mm	Solid	ASTM B-3	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	75 ░C	0 °C	3	18 AWG	1000 ft	304.8 m	3.84 mm	0.151 in	150 V	Communication Control
Prysmian Group C3114.41.86	Rip Cord			Copper Bare	Multi-Conductor	0.015 in	0.381 mm	Solid	ASTM B-3	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	75 ░C	0 °C	3	18 AWG	1000 ft	304.8 m	3.84 mm	0.151 in	150 V	Communication Control	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Natural 18 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
