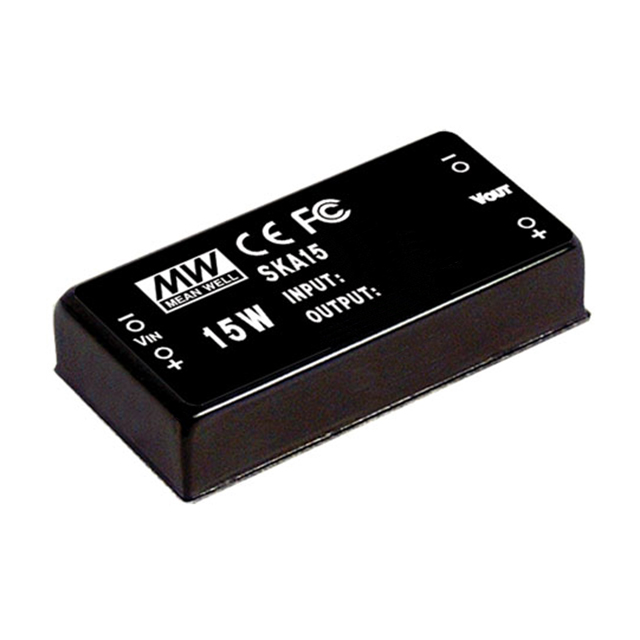

SKA15A-033

Active

MEAN WELL USA Inc.

DC DC CONVERTER 3.3V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKA15A-033

Active

MEAN WELL USA Inc.

DC DC CONVERTER 3.3V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SKA15A-033

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3 A
Efficiency	76 %
Features	SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	11.3 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1000 V
Voltage - Output 1	3.3 V

SKA15 Series

Part	Voltage - Input (Min) [Min]	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Type	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Mounting Type	Applications
MEAN WELL USA Inc. SKA15B-033	18 V	10 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	76 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	3.3 V	36 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15C-12	36 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	1.25 A		1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	12 V	72 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15B-15	18 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	1 A	80 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	15 V	36 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15B-05	18 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	78 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	5 V	36 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15C-05	36 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	80 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	5 V	72 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15C-033	36 V	10 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	76 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	3.3 V	72 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15A-033	9 V	10 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	76 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	3.3 V	18 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15A-12	9 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	1.25 A		1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	12 V	18 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15A-05	9 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	3 A	78 %	1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	5 V	18 V	Through Hole	ITE (Commercial)
MEAN WELL USA Inc. SKA15A-15	9 V	15 W	OVP SCP	71 °C	-40 °C	1000 V	1 A		1	Isolated Module	5-DIP Module	11.3 mm	25.4 mm	25.4 mm	0.44 "	50.8 mm	2 in	15 V	18 V	Through Hole	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 23.20

Description

General part information

SKA15 Series

Isolated Module DC DC Converter 1 Output 3.3V 3A 9V - 18V Input
