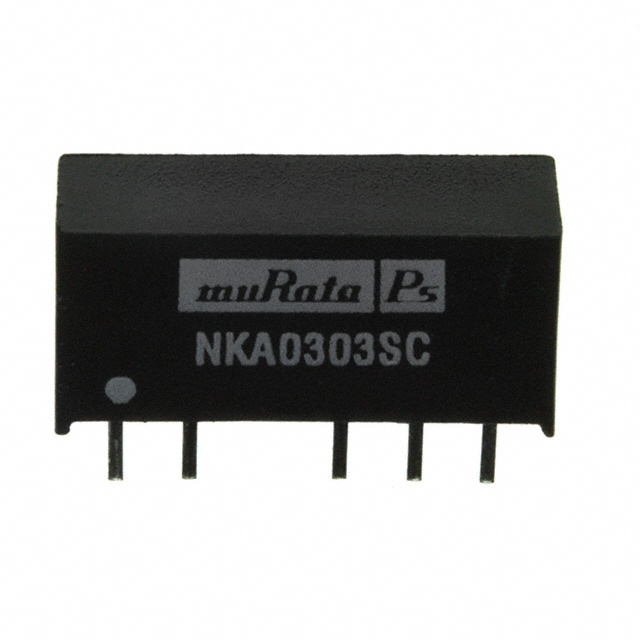

NKA0303SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 152mA, 152mA 3V - 3.6V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NKA0303SC	NKA03 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	152 mA	152 mA
Current - Output (Max)	152 mA	152 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	74 %	74 - 78 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SIP Module, 5 Leads	14-DIP Module, 6 Leads, 6-SIP Module, 5 Leads
Size / Dimension [x]	16.5 mm	16.5 - 19.5 mm
Size / Dimension [x]	0.65 in	0.65 - 0.77 in
Size / Dimension [y]	0.23 in	0.23 - 0.39 "
Size / Dimension [y]	5.8 mm	5.8 - 9.8 mm
Size / Dimension [z]	7.6 mm	5.4 - 7.6 mm
Size / Dimension [z]	0.3 "	0.21 - 0.3 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	3.6 V	3.6 V
Voltage - Input (Min) [Min]	3 V	3 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	3.3 V	3.3 - 12 V
Voltage - Output 2	-3.3 V	-12 - -3.3 V

DC DC CONVERTER +/-9V 1W

Part	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Applications	Mounting Type	Voltage - Isolation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NKA0309DC	14-DIP Module, 6 Leads	3 V	9.8 mm	19.5 mm	5.4 mm	0.77 in	0.39 "	0.21 in	42 mA	42 mA	2	3.6 V	Isolated Module	9 V	ITE (Commercial)	Through Hole	3000 V	74 %	85 °C	-40 °C	-9 V
Murata Power Solutions Inc. NKA0303SC	6-SIP Module, 5 Leads	3 V	5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "			2	3.6 V	Isolated Module	3.3 V	ITE (Commercial)	Through Hole	3000 V	74 %	85 °C	-40 °C	-3.3 V	152 mA	152 mA
Murata Power Solutions Inc. NKA0312SC	6-SIP Module, 5 Leads	3 V	5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "	42 mA	42 mA	2	3.6 V	Isolated Module	12 V	ITE (Commercial)	Through Hole	3000 V	78 %	85 °C	-40 °C	-12 V
Murata Power Solutions Inc. NKA0303DC	14-DIP Module, 6 Leads	3 V	9.8 mm	19.5 mm	5.4 mm	0.77 in	0.39 "	0.21 in			2	3.6 V	Isolated Module	3.3 V	ITE (Commercial)	Through Hole	3000 V	74 %	85 °C	-40 °C	-3.3 V	152 mA	152 mA
