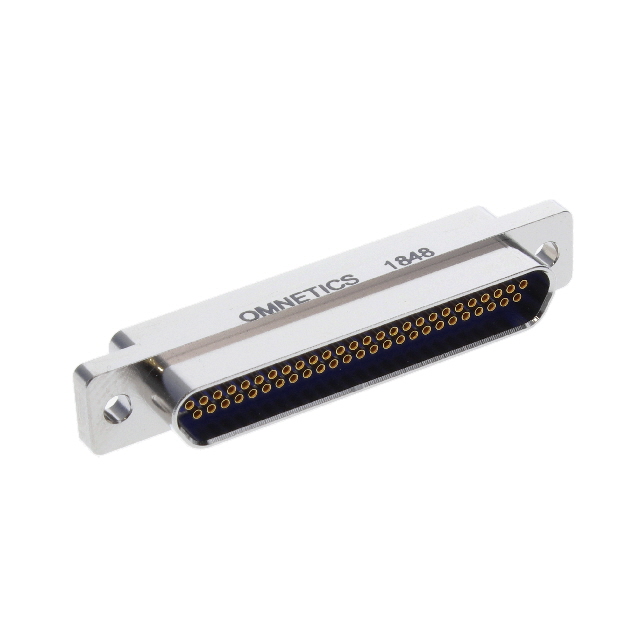

A99000-512

Active

Omnetics

CONN MICRO-D RCPT 51POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 51POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	A99000-512	MMDS-512 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	51	51
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY D-MIC-D 102P 457.2MM

Part	Number of Positions	Shielding	Type	2nd Connector	1st Connector	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Flange Feature	Connector Style	Current Rating (Amps)	Contact Material	Contact Form	Mounting Type	Connector Type	Contact Type	Number of Rows
Omnetics A99100-512	51	Unshielded	D-Type, Micro-D	Individual Wire Leads	Female Sockets, Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm	Individual, Multiple	Gold
Omnetics A99000-512	51							50 µin	1.27 µm		Gold	0.05	0.05	Thermoplastic	-55 °C	125 °C	Aluminum, Electroless, Nickel Plated	Housing/Shell (Unthreaded)	D-Type, Micro-D	3 A	Copper Alloy	Stamped	Free Hanging (In-Line)	Receptacle, Female Sockets	Signal	2
