SPC5643LF2MMM1

Active

Freescale Semiconductor - NXP

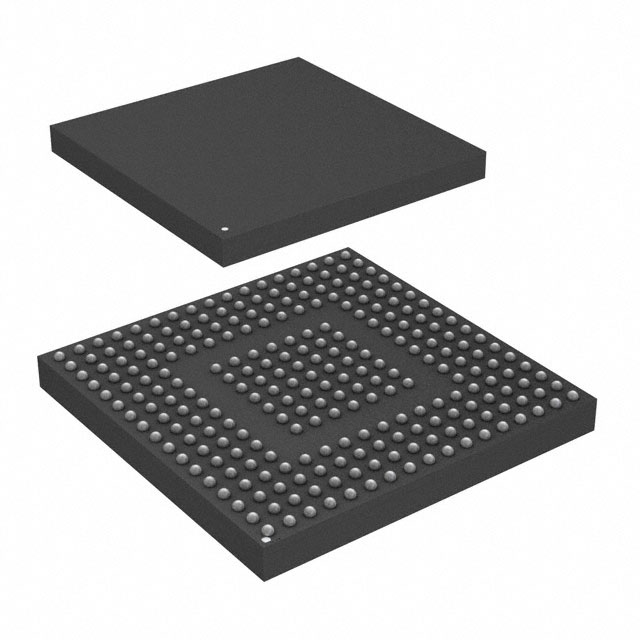

NXP 32-BIT MCU, DUAL POWER ARCH, 1MB FLASH, 120MHZ, -40/+125DEGC, AUTOMOTIVE QUAL, MAPBGA 257/ TRAY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

SPC5643LF2MMM1

Active

Freescale Semiconductor - NXP

NXP 32-BIT MCU, DUAL POWER ARCH, 1MB FLASH, 120MHZ, -40/+125DEGC, AUTOMOTIVE QUAL, MAPBGA 257/ TRAY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPC5643LF2MMM1

Connectivity	UART/USART, SPI, CANbus, FlexRay, LINbus
Core Processor	e200z4
Core Size [custom]	32-Bit Dual-Core
Data Converters [custom]	12 b
Data Converters [custom]	32
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	257-LFBGA
Peripherals	WDT, DMA, PWM, POR
Program Memory Size	1 MB
Program Memory Type	FLASH
RAM Size	128 K
Speed	120 MHz
Supplier Device Package	257-LFBGA (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

SPC5643 Series

Part	Speed	Core Size [custom]	RAM Size	Peripherals	Supplier Device Package	Program Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Package / Case	Program Memory Size	Core Processor	Data Converters [custom]	Data Converters [custom]	Connectivity	Core Size	Data Converters	Number of I/O
Freescale Semiconductor - NXP SPC5643LFF0MLQ1R	120 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LF0MLQ8	80 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LF2MMM1	120 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	257-LFBGA (14x14)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	257-LFBGA	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LK0MLL6	64 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	100-LQFP (14x14)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	100-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LFK0MLL6R	64 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	100-LQFP (14x14)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	100-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643AF0MLU2R	120 MHz		192 K	DMA POR PWM WDT	176-LQFP (24x24)	FLASH	-40 °C	125 °C	Internal	5.25 V	1.14 V	Surface Mount	176-LQFP	3 MB	e200z4			CANbus EBI/EMI LINbus SCI SPI	32-Bit Single-Core	12 b 40 x	84 I/O
Freescale Semiconductor - NXP SPC5643LFAMLQ1	120 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LF2MLQ1R	120 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LF2MLQ8R	80 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART
Freescale Semiconductor - NXP SPC5643LFF0MLQ8	80 MHz	32-Bit Dual-Core	128 K	DMA POR PWM WDT	144-LQFP (20x20)	FLASH	-40 °C	125 °C	Internal	5.5 V	3 V	Surface Mount	144-LQFP	1 MB	e200z4	12 b	32	CANbus FlexRay LINbus SPI UART/USART

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	760	$ 19.95
Newark	Each	250	$ 21.71
		250	$ 21.71

Description

General part information

SPC5643 Series

e200z4 MPC56xx Qorivva Microcontroller IC 32-Bit Dual-Core 120MHz 1MB (1M x 8) FLASH 257-LFBGA (14x14)

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
