MLE-105-01-G-DV

Unknown

Samtec Inc.

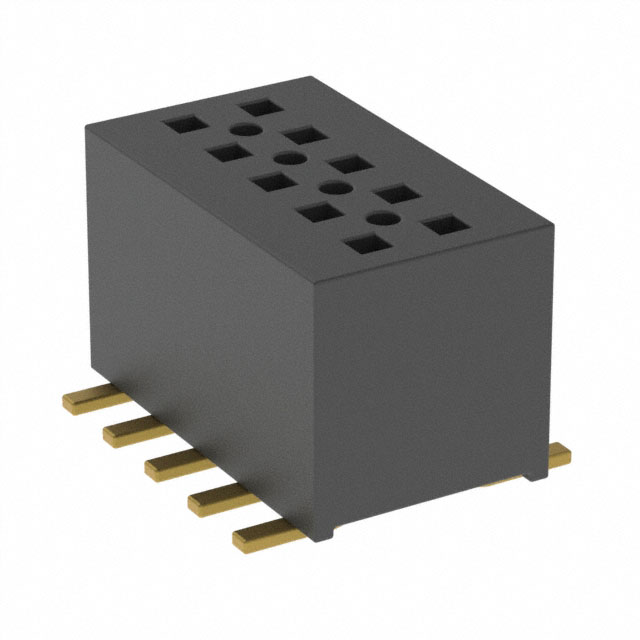

CONN RCPT 10POS 0.039 GOLD SMD

Search across all available documentation for this part.

Unknown

Samtec Inc.

CONN RCPT 10POS 0.039 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MLE-105-01-G-DV

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	310 VAC

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Shape	Termination	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Insulation Color	Contact Material	Insulation Material	Contact Finish - Mating	Contact Type	Fastening Type	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Features
Samtec Inc. MLE-105-01-G-DV	2.9 A	-55 °C	125 °C	Surface Mount	Square	Solder	310 VAC	10 çin	0.25 çm	All	0.039 "	1 mm	10	Black	Beryllium Copper	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Push-Pull	0.13 in	3.3 mm	Receptacle	0.039 in	1 mm	2
Samtec Inc. MLE-105-01-G-DV-A-K-TR	2.9 A	-55 °C	125 °C	Surface Mount	Square	Solder	310 VAC	10 çin	0.25 çm	All	0.039 "	1 mm	10	Black	Beryllium Copper	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Push-Pull	0.13 in	3.3 mm	Receptacle	0.039 in	1 mm	2	Board Guide Pick and Place
Samtec Inc. MLE-105-01-G-DV-A-P	2.9 A	-55 °C	125 °C	Surface Mount	Square	Solder	310 VAC	10 çin	0.25 çm	All	0.039 "	1 mm	10	Black	Beryllium Copper	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Push-Pull	0.13 in	3.3 mm	Receptacle	0.039 in	1 mm	2	Board Guide Pick and Place
Samtec Inc. MLE-105-01-G-DV-A-P-TR	2.9 A	-55 °C	125 °C	Surface Mount	Square	Solder	310 VAC	10 çin	0.25 çm	All	0.039 "	1 mm	10	Black	Beryllium Copper	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Push-Pull	0.13 in	3.3 mm	Receptacle	0.039 in	1 mm	2	Board Guide Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
