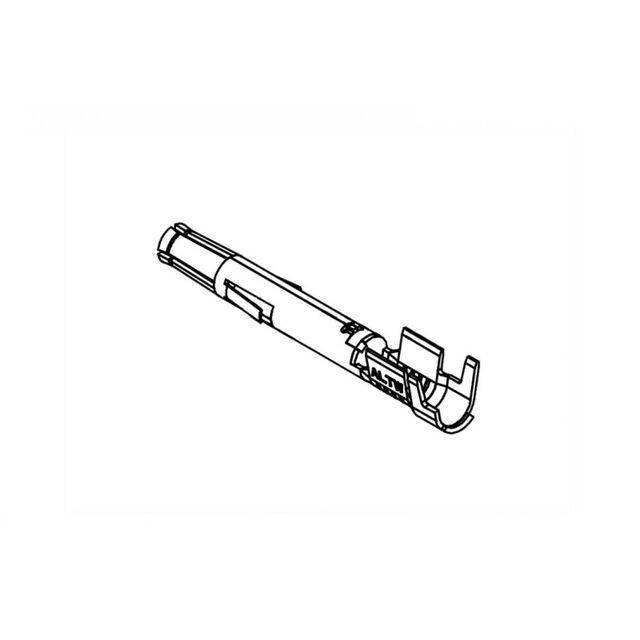

ASSP-20-F-A-C-SB
ActiveAmphenol LTW
X-LOK, TERMINAL (PHOSPHOR BRONZE, CRIMP), 20A, FEMALE CONTACT, 12-14 AWG ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ASSP-20-F-A-C-SB
ActiveAmphenol LTW
X-LOK, TERMINAL (PHOSPHOR BRONZE, CRIMP), 20A, FEMALE CONTACT, 12-14 AWG ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASSP-20-F-A-C-SB |
|---|---|
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm² [Max] | 0.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.34 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ASSP-20 Series
Socket Contact 20-22 AWG Size Crimp
Documents
Technical documentation and resources
No documents available
