SW13 WH008

Active

ALPHA WIRE

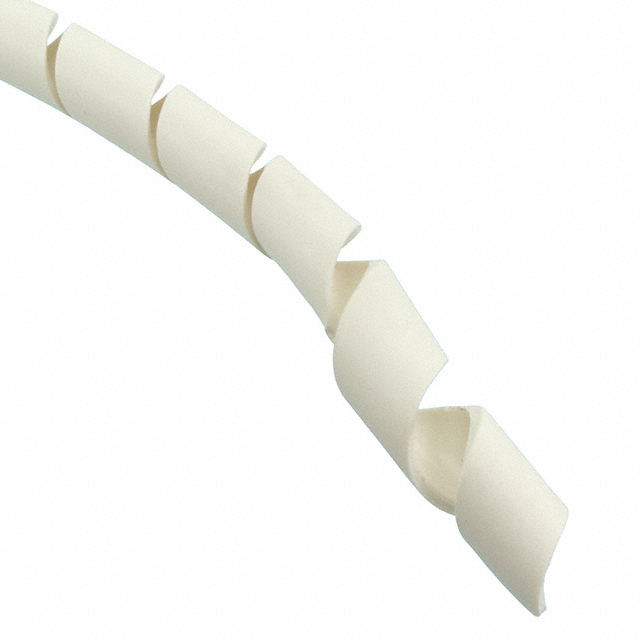

SPIRAL WRAP 0.376" X 25' WHITE

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.376" X 25' WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SW13 WH008

Color	White
Diameter - Inside, Non-Expanded [diameter]	0.376 in
Diameter - Inside, Non-Expanded [diameter]	9.55 mm
Diameter - Outside, Non-Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	12.7 mm
Features	Self Extinguishing
Heat Protection	Flame Retardant
Length [x]	25 ft
Length [x]	7.62 m
Material	Polyethylene (PE)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.57 mm
Wall Thickness	0.062 in

SPIRAL WRAP 0.376" X 25' WHITE

Part	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Heat Protection	Features	Color	Length [x]	Length [x]	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes
ALPHA WIRE SW13 WH008	Spiral Wrap	0.5 in	12.7 mm	Flame Retardant	Self Extinguishing	White	25 ft	7.62 m	1.57 mm	0.062 in	0.376 in	9.55 mm	Polyethylene (PE)	-20 C	80 C	Harness

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.500" (12.70mm) X 25.00' (7.62m) White
