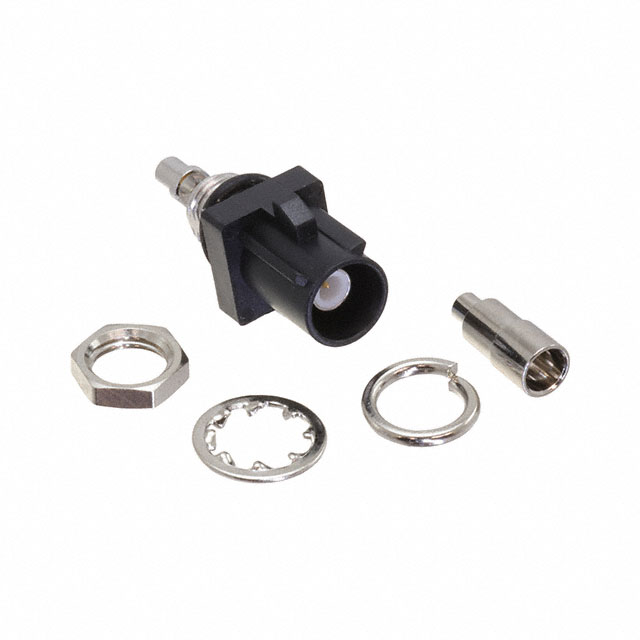

Specification	RF55-24A-T-09-50-A-SH

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, SMB
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code A
Features - Code	A
Frequency - Max	4 GHz
Housing Color	Black
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder

RF55-24 Series

Part	Center Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Number of Ports	Impedance	Shield Termination	Connector Style	Connector Type	Frequency - Max	Contact Termination	Mounting Feature	Housing Color	Features	Body Material	Dielectric Material	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Features - Code
Adam Tech RF55-24Z-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Blue Water	Code Z	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24K-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Curry	Code K	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24A-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Black	Code A	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C	A
Adam Tech RF55-24F-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Brown	Code F	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24B-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	White	Code B	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24N-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Green Pastel	Code N	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24M-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Orange Pastel	Code M	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24D-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Bordeaux Violet	Code D	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
Adam Tech RF55-24H-T-09-50-A-SH	Brass	Dust Tight Waterproof	IP67	Panel Mount	1	50 Ohm	Solder	Fakra SMB	Male Pin Plug	4 GHz	Crimp	Bulkhead Rear Side Nut	Violet	Code H	Brass	Polytetrafluoroethylene (PTFE)	Gold	-40 °C	85 °C
