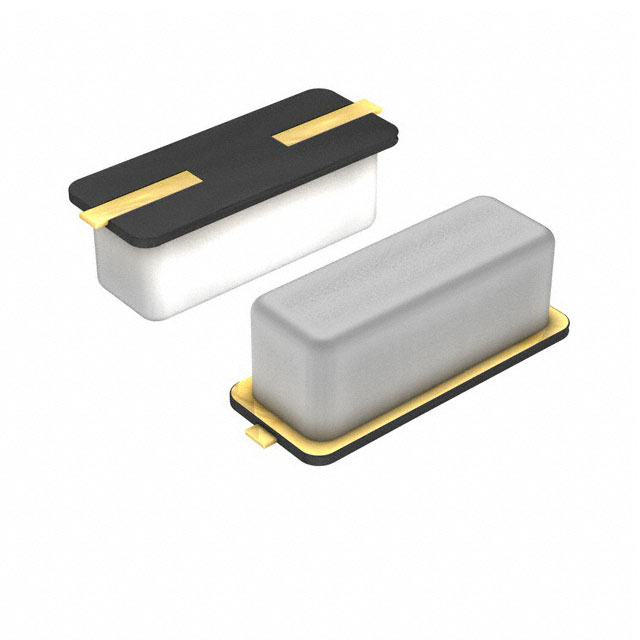

GC2500174Z

Active

Diodes Inc

CRYSTAL 25.0000MHZ 20PF

Search across all available documentation for this part.

Active

Diodes Inc

CRYSTAL 25.0000MHZ 20PF

Technical Specifications

Parameters and characteristics for this part

Specification	GC2500174Z

ESR (Equivalent Series Resistance)	30 Ohm
Frequency	25 MHz
Frequency Stability	15 ppm
Frequency Tolerance	10 ppm
Load Capacitance	20 pF
Operating Mode	Fundamental
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Type	MHz Crystal

Part	Frequency Tolerance	Frequency	ESR (Equivalent Series Resistance)	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Load Capacitance	Operating Mode	Type
Diodes Inc GC2500174Z	10 ppm	25 MHz	30 Ohm	15 ppm	-20 C	70 °C	20 pF	Fundamental	MHz Crystal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.29

General part information

25 MHz ±10ppm Crystal 20pF 30 Ohms
