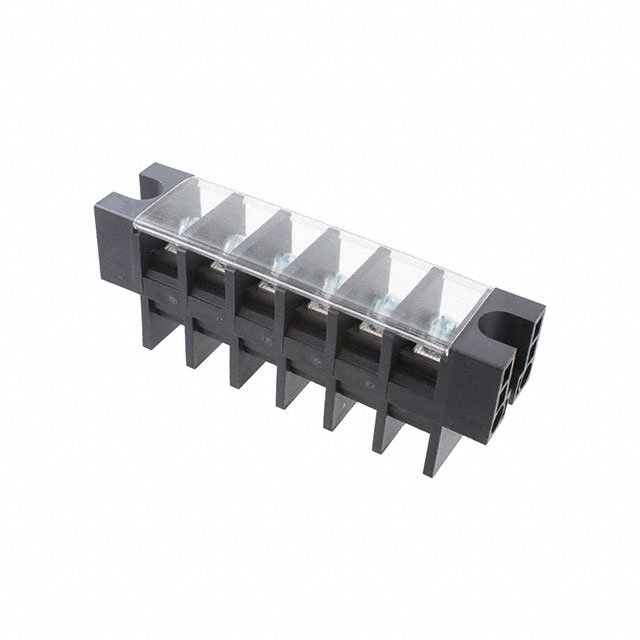

TBU-06-W3-CC

Active

Adam Tech

CONNECTOR: TERMINAL BLOCK; 65A; 600V; MOUNTING HOLES; TINNED; PBT

Search across all available documentation for this part.

Active

Adam Tech

CONNECTOR: TERMINAL BLOCK; 65A; 600V; MOUNTING HOLES; TINNED; PBT

Technical Specifications

Parameters and characteristics for this part

Specification	TBU-06-W3-CC

Barrier Type	2 Wall (Dual)
Bottom Termination	Screw
Color	Black
Current Rating (Amps)	65 A
Features	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	6
Number of Rows	1
Number of Wire Entries	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.63 in
Pitch [x]	16 mm
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	6 AWG

Part	Current Rating (Amps)	Number of Circuits	Material - Insulation	Terminal Screw Material	Voltage Rating	Material Flammability Rating	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Features	Terminal Block Type	Top Termination	Pitch [x]	Pitch [x]	Number of Wire Entries	Terminal Screw Finish	Barrier Type
Adam Tech TBU-06-W3-CC	65 A	6	Polybutylene Terephthalate (PBT)	Steel	600 V	UL94 V-0	Black	Chassis Panel	-40 °C	130 °C	Screw	6 AWG	14 AWG	1	Flange	Barrier Block	Screws	0.63 in	16 mm	6	Nickel	2 Wall (Dual)
Adam Tech TBU-06-W2	50 A	6	Polybutylene Terephthalate (PBT)	Steel	600 V	UL94 V-0	Black	Chassis Panel	-40 °C	130 °C	Screw	8 AWG	22 AWG	1	Flange	Barrier Block	Screws with Captive Plate	0.512 in	13 mm	6	Nickel	2 Wall (Dual)
