8200-W

Unknown

3M (TC)

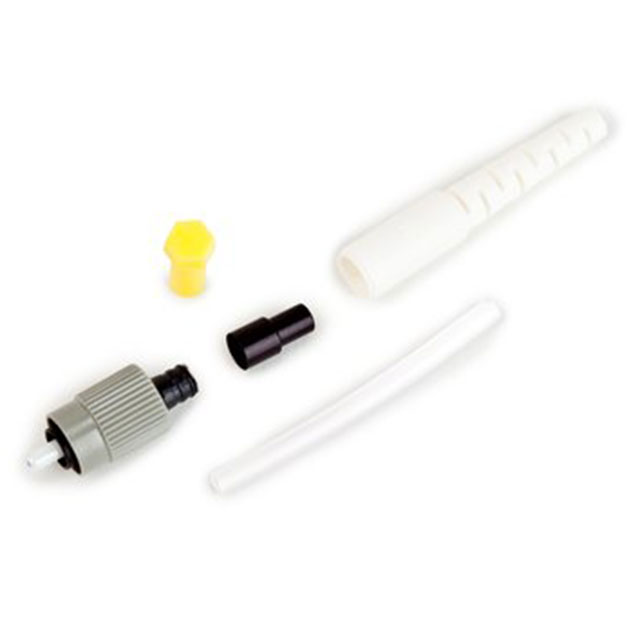

CONN FIBER FC PLUG SMPLX 125UM

Search across all available documentation for this part.

Unknown

3M (TC)

CONN FIBER FC PLUG SMPLX 125UM

Technical Specifications

Parameters and characteristics for this part

Specification	8200-W

Attenuation - Typ	-2 dB
Body Material	Engineered Resin
Boot Color	White
Cable Diameter [diameter]	0.9 mm
Connector Type	Plug
Features	Strain Relief, Hot Melt, Dust Cap
Ferrule Material	Zirconia
Housing Color	Silver
Housing Material	Engineered Resin
Mating Cycles	500
Mode	Singlemode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Reflection	-40 dB
Simplex/Duplex	Simplex

Part	Type	Features	Housing Color	Simplex/Duplex	Housing Material	Attenuation - Typ	Mounting Type	Reflection	Mating Cycles	Connector Type	Mode	Boot Color	Cable Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ferrule Material	Body Material
3M (TC) 8200XC1-C	Particulate Respirator
3M (TC) 8200-W		Dust Cap Hot Melt Strain Relief	Silver	Simplex	Engineered Resin	-2 dB	Free Hanging (In-Line)	-40 dB	500	Plug	Singlemode	White	0.9 mm	-10 °C	60 °C	Zirconia	Engineered Resin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 12.27

General part information

Fiber Optic Plug Connector FC Simplex 125µm Silver
