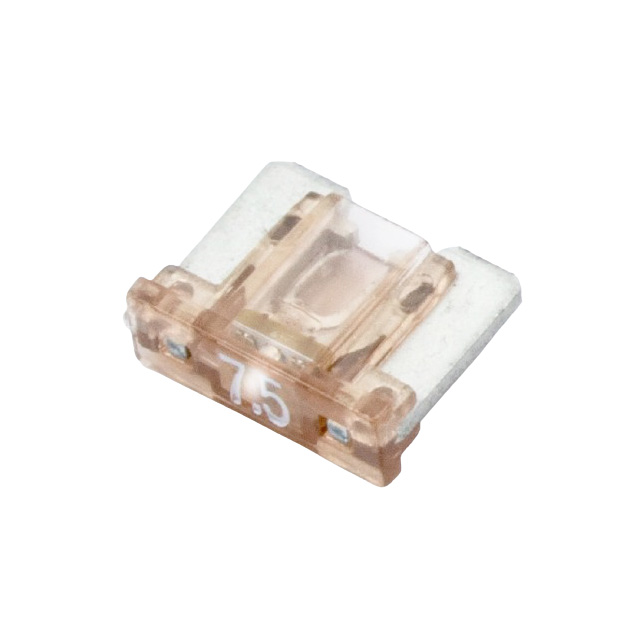

APS-I-7.5A

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	APS-I-7.5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Brown
Current Rating (Amps)	7.5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature (Low Profile)
Response Time	Fast Blow
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	3.9 mm
Size / Dimension [y]	0.154 in
Size / Dimension [z]	0.354 in
Size / Dimension [z]	9 mm
Voltage Rating - DC	32 V

Part	Current Rating (Amps)	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Package / Case	Response Time	Color	Fuse Type	Breaking Capacity @ Rated Voltage	Mounting Type
OptiFuse APS-I-4A	4 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Pink	Automotive	1 kA	Requires Holder
OptiFuse APS-I-10A	10 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Red	Automotive	1 kA	Requires Holder
OptiFuse APS-I-20A	20 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Yellow	Automotive	1 kA	Requires Holder
OptiFuse APS-I-7.5A	7.5 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Brown	Automotive	1 kA	Requires Holder
OptiFuse APS-I-5A	5 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Tan	Automotive	1 kA	Requires Holder
OptiFuse APS-I-25A	25 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Clear	Automotive	1 kA	Requires Holder
OptiFuse APS-I-15A	15 A	32 V	3.9 mm	0.154 in	0.354 in	0.433 in	11 mm	9 mm	ISO SAE	Blade Miniature (Low Profile)	Fast Blow	Blue	Automotive	1 kA	Requires Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.46

General part information

7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
