M52-5112345

Active

Harwin Inc.

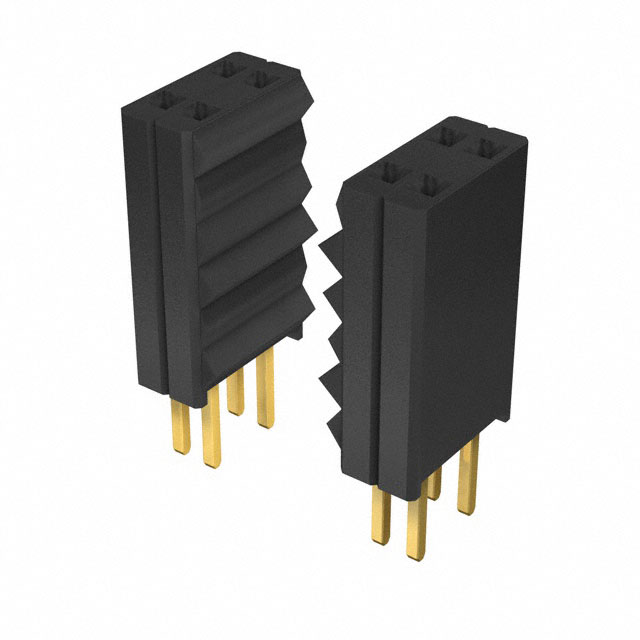

23+23 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

23+23 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5112345

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Mounting Type	Connector Type	Material Flammability Rating	Applications	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Shape	Fastening Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Material	Contact Length - Post [x]	Contact Length - Post	Termination
Harwin Inc. M52-5112345	Through Hole	Receptacle	UL94 V-0	General Purpose Medical Telecommunications	Black	0.335 "	8.51 mm	0.05 in	1.27 mm	Forked	46	All	-40 °C	105 ░C	Gold	Rectangular	Push-Pull	Nylon 9T Polyamide (PA9T)	2.54 mm	0.1 in	2	Phosphor Bronze	0.11 in	2.79 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1007	$ 3.56
Newark	Each	1000	$ 4.14
		2500	$ 3.73

General part information

46 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
