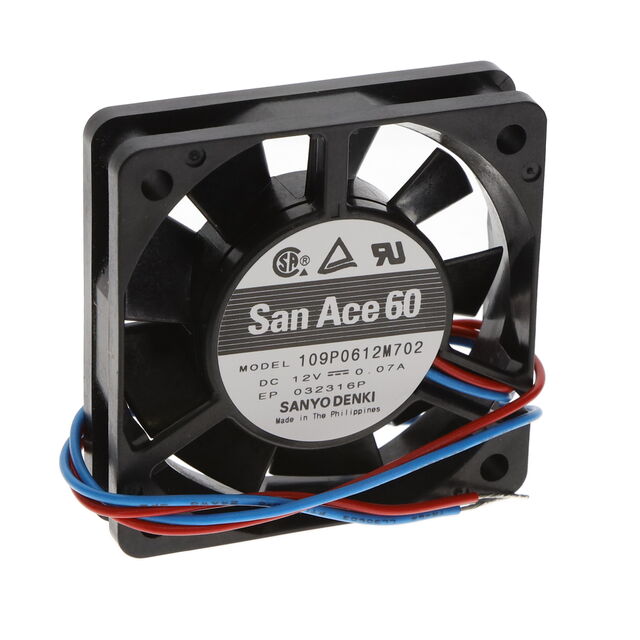

109P0612M702

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan

109P0612M702

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0612M702

Air Flow	0.297 m³/min
Air Flow	10.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	840 mW
RPM	3100 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.091 in H2O
Static Pressure	22.7 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	60.33 g
Weight	0.133 lb
Width [x]	15 mm

109P0612 Series

Part	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Bearing Type	Weight	Weight	Static Pressure	Static Pressure	RPM	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Termination	Air Flow	Air Flow	Approval Agency	Voltage - Rated	Features	Power (Watts)	Width [x]	Noise	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Width [y]
Sanyo Denki America Inc. 109P0612K701	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	99.3 Pa	0.399 in H2O	6500 RPM	60 mm	60 mm	0.26 A	3 Wire Leads	0.613 m³/min	21.9 CFM	CSA TUV UL	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	3.12 W	15 mm	45 dB(A)	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Plastic
Sanyo Denki America Inc. 109P0612K702	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	99.3 Pa	0.399 in H2O	6500 RPM	60 mm	60 mm	0.26 A	2 Wire Leads	0.613 m³/min	21.9 CFM	CSA TUV UL	12 VDC		3.12 W	15 mm	45 dB(A)	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Plastic
Sanyo Denki America Inc. 109P0612K7D01	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	99.3 Pa	0.399 in H2O	6500 RPM	60 mm	60 mm	0.26 A	3 Wire Leads	0.613 m³/min	21.9 CFM	CSA TUV UL	12 VDC	Locked Rotor Sensor	3.12 W	15 mm	45 dB(A)	40000 Hrs	60 °C	-20 °C	-20 C	60 °C	Plastic
Sanyo Denki America Inc. 109P0612M602	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	18.9 Pa	0.076 in H2O	3200 RPM	60 mm	60 mm	0.09 A	2 Wire Leads	0.297 m³/min	10.6 CFM	CSA TUV UL	12 VDC		1.08 W		25 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic	20 mm
Sanyo Denki America Inc. 109P0612H601	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	31.8 Pa	0.128 in H2O	4200 RPM	60 mm	60 mm		3 Wire Leads	0.414 mł/min	14.8 CFM	CSA TUV UL	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	1.56 W		31 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic	20 mm
Sanyo Denki America Inc. 109P0612H6D01	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	31.8 Pa	0.128 in H2O	4200 RPM	60 mm	60 mm		3 Wire Leads	0.414 mł/min	14.8 CFM	CSA TUV UL	12 VDC	Locked Rotor Sensor	1.56 W		31 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic	20 mm
Sanyo Denki America Inc. 109P0612M702	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	22.7 Pa	0.091 in H2O	3100 RPM	60 mm	60 mm	70 mA	2 Wire Leads	0.297 m³/min	10.6 CFM	CSA TUV UL	12 VDC		840 mW	15 mm	25 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic
Sanyo Denki America Inc. 109P0612M601	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	18.9 Pa	0.076 in H2O	3200 RPM	60 mm	60 mm	0.09 A	3 Wire Leads	0.297 m³/min	10.6 CFM	CSA TUV UL	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	1.08 W		25 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic	20 mm
Sanyo Denki America Inc. 109P0612M7D01	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	22.7 Pa	0.091 in H2O	3100 RPM	60 mm	60 mm	70 mA	3 Wire Leads	0.297 m³/min	10.6 CFM	CSA TUV UL	12 VDC	Locked Rotor Sensor	840 mW	15 mm	25 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic
Sanyo Denki America Inc. 109P0612B7D01	Tubeaxial	10.2 VDC	13.8 VDC	Plastic	Ball	60.33 g	0.133 lb	11.8 Pa	0.047 in H2O	2200 RPM	60 mm	60 mm	50 mA	3 Wire Leads	0.207 mł/min	7.4 CFM	CSA TUV UL	12 VDC	Locked Rotor Sensor	600 mW	15 mm	21 dB(A)		70 °C	-20 °C	-20 C	70 °C	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.70
		10	$ 12.22
		25	$ 11.67
		50	$ 11.27
		100	$ 10.89
		250	$ 10.40
		500	$ 10.05

Description

General part information

109P0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 10.6 CFM (0.297m³/min) 2 Wire Leads
