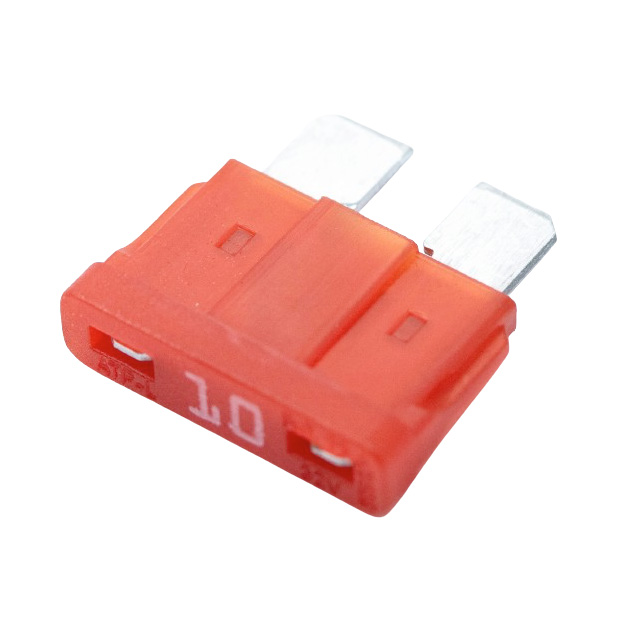

ANR-10A

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE ATO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 10A 32VDC BLADE ATO

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-10A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	10 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

FUSE AUTO 10A 32VDC BLADE ATO

Part	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Voltage Rating - DC	Fuse Type	Mounting Type	Package / Case	Breaking Capacity @ Rated Voltage	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Color
OptiFuse ANR-10A	ISO, SAE	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	10 A	32 V	Automotive	Requires Holder	ATC, ATO, Blade	1 kA	Fast Blow	-40 °C	105 ░C	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
