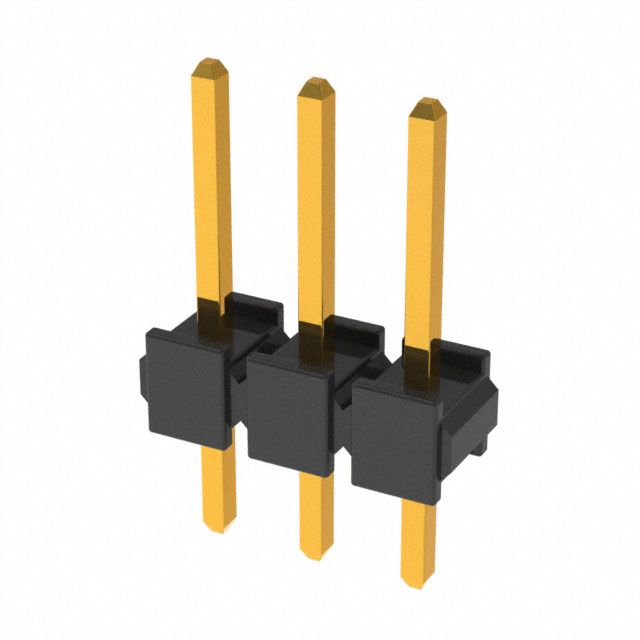

XG8V-0331

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG8V-0331

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.37
		10	$ 0.28
		100	$ 0.22
		500	$ 0.18
		1000	$ 0.17
		5000	$ 0.14
		10000	$ 0.13

Description

General part information

XG8V Series

Connector Header Through Hole 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XG8V-0331	XG8V Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Length - Mating	6 mm	6 mm
Contact Length - Mating	0.236 in	0.236 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.453 in	0.453 in
Overall Contact Length	11.5 mm	11.5 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XG8V Series

CONN HEADER VERT 5POS 2.54MM

Part	Voltage Rating	Connector Type	Style	Contact Material	Material Flammability Rating	Current Rating (Amps)	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Type	Mounting Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Number of Positions
Omron Electronics Inc-EMC Div XG8V-0531	300 VDC	Header	Board to Board, Cable	Brass, Nickel	UL94 V-0	3 A	Polybutylene Terephthalate (PBT), Glass Filled	0.15 µm	5.9 µin	0.453 in	11.5 mm	6 mm	0.236 in	Solder	Push-Pull	105 ░C	-55 °C	Gold	Unshrouded	Square	0.1 in	2.54 mm	Gold	0.098 in	2.5 mm	All	Male Pin	Through Hole	1	0.15 µm	5.9 µin	0.118 in	3 mm	Black
Omron Electronics Inc-EMC Div XG8V-0431	300 VDC	Header	Board to Board, Cable	Brass, Nickel	UL94 V-0	3 A	Polybutylene Terephthalate (PBT), Glass Filled	0.15 µm	5.9 µin	0.453 in	11.5 mm	6 mm	0.236 in	Solder	Push-Pull	105 ░C	-55 °C	Gold	Unshrouded	Square	0.1 in	2.54 mm	Gold	0.098 in	2.5 mm	All	Male Pin	Through Hole	1	0.15 µm	5.9 µin	0.118 in	3 mm	Black	4
Omron Electronics Inc-EMC Div XG8V-0331	300 VDC	Header	Board to Board, Cable	Brass, Nickel	UL94 V-0	3 A	Polybutylene Terephthalate (PBT), Glass Filled	0.15 µm	5.9 µin	0.453 in	11.5 mm	6 mm	0.236 in	Solder	Push-Pull	105 ░C	-55 °C	Gold	Unshrouded	Square	0.1 in	2.54 mm	Gold	0.098 in	2.5 mm	All	Male Pin	Through Hole	1	0.15 µm	5.9 µin	0.118 in	3 mm	Black
