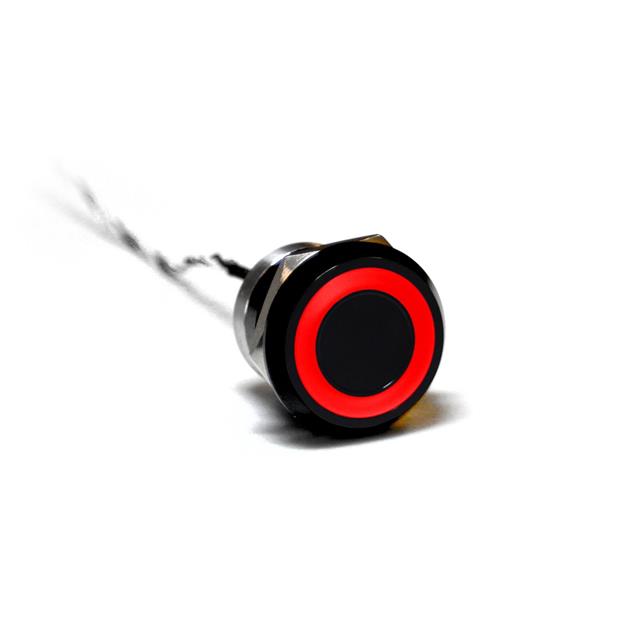

MC25MCBRD

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST ON-MOM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST ON-MOM

Technical Specifications

Parameters and characteristics for this part

Specification	MC25MCBRD

Actuator Type	Flush, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	24 V

Part	Voltage Rating - DC	Color - Actuator/Cap	Type	Current Rating (Amps)	Mechanical Life	Illumination Voltage (Nominal)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Switch Function	Illumination Type, Color	Mounting Type	Ingress Protection	Circuit	Electrical Life	Actuator Type	Actuator Marking
BULGIN LIMITED MC25MCBGN	24 V	Black	Capacitive Illuminated	500 mA	50000000 Cycles	12 VDC	Wire Leads	55 °C	-25 °C	25.2 mm	On-Mom	Green LED	Panel Mount Front	IP68 IP69K	SPST-NC	50000000 Cycles	Button Flush Round
BULGIN LIMITED MC25MCBGR	12 V	Black	Capacitive Illuminated	500 mA	50000000 Cycles		Wire Leads	55 °C	-25 °C	25.2 mm	On-Mom	Green/Red LED	Panel Mount Front	IP68 IP69K	SPST-NC	50000000 Cycles	Button Flush Round	No Marking
BULGIN LIMITED MC25MCBRD	24 V	Black	Capacitive Illuminated	500 mA	50000000 Cycles	12 VDC	Wire Leads	55 °C	-25 °C	25.2 mm	On-Mom	LED Red	Panel Mount Front	IP68 IP69K	SPST-NC	50000000 Cycles	Button Flush Round
BULGIN LIMITED MC25MCBAM	24 V	Black	Capacitive Illuminated	500 mA	50000000 Cycles	12 VDC	Wire Leads	55 °C	-25 °C	25.2 mm	On-Mom	Amber LED	Panel Mount Front	IP68 IP69K	SPST-NC	50000000 Cycles	Button Flush Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 46.90

General part information

Pushbutton Switch SPST-NC Capacitive, Illuminated Panel Mount, Front
