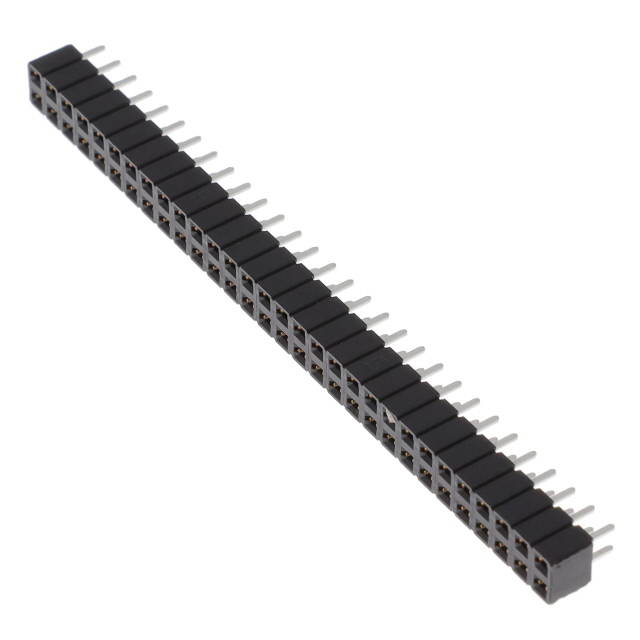

SLW-130-01-F-D

Active

Samtec Inc.

CONN RCPT 60POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 60POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SLW-130-01-F-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	406 VAC

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Shape	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Type	Fastening Type	Voltage Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Mated Stacking Heights
Samtec Inc. SLW-130-01-F-D	2.54 mm	0.1 in	Polyester Glass Filled	105 ░C	-55 °C	Phosphor Bronze	Tin	2.92 mm	0.115 in	3 µin	0.076 µm	Black	Through Hole	All	5.5 A	60	Square	2	0.1 in	2.54 mm	Solder	Receptacle	Forked	Push-Pull	406 VAC	Gold	4.57 mm	0.18 "
Samtec Inc. SLW-130-01-T-D	2.54 mm	0.1 in	Polyester Glass Filled	105 ░C	-55 °C	Phosphor Bronze	Tin	2.92 mm	0.115 in			Black	Through Hole	All		60	Square	2	0.1 in	2.54 mm	Solder	Receptacle	Forked	Push-Pull			4.57 mm	0.18 "	6.09 mm
