71-02-7209-1000

Active

Parker Chomerics

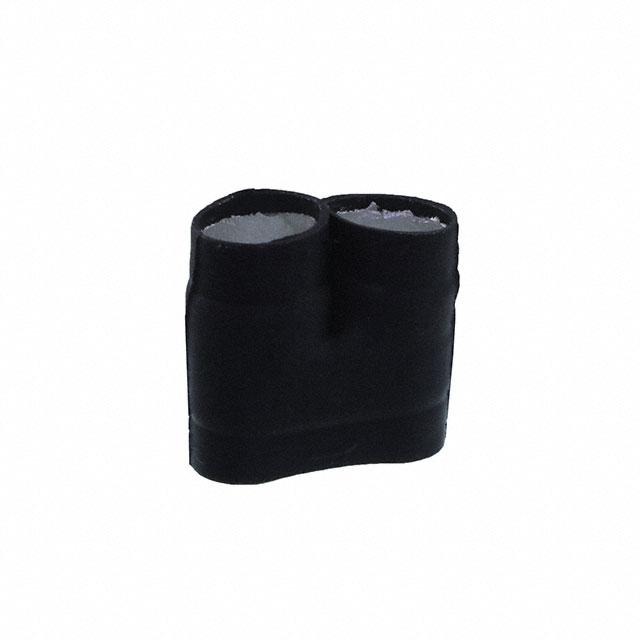

EMI HEATSHRINK BOOT BRKOUT 2:1 T

Search across all available documentation for this part.

Active

Parker Chomerics

EMI HEATSHRINK BOOT BRKOUT 2:1 T

Technical Specifications

Parameters and characteristics for this part

Specification	71-02-7209-1000

Color	Black
Large Diameter Recovered [diameter]	3.56 mm
Large Diameter Recovered [diameter]	0.14 in
Large Diameter Supplied [diameter]	6.6 mm
Large Diameter Supplied [diameter]	0.26 in
Material	Polyolefin (PO)
Small Diameter Recovered [diameter]	0.14 "
Small Diameter Recovered [diameter]	3.56 mm
Small Diameter Supplied [diameter]	6.6 mm
Small Diameter Supplied [diameter]	0.26 in
Small Recovered Length	14.73 mm
Small Recovered Length	0.58 in
Total Length Recovered	29.72 mm
Total Length Recovered [x]	1.17 in
Type	Boot, Transition - Breakout, 2:1 (T)

Part	Color	Total Length Recovered	Total Length Recovered [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Type	Small Recovered Length	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]
Parker Chomerics 71-02-7209-1000	Black	29.72 mm	1.17 in	6.6 mm	0.26 in	Polyolefin (PO)	Boot Transition - Breakout 2:1 (T)	14.73 mm	0.58 in	3.56 mm	0.14 in	6.6 mm	0.26 in	0.14 "	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Boot, Transition - Breakout, 2:1 (T) Black
