9FGP204BKLFT
ActiveRenesas Electronics Corporation
CK-MNG+ PERIPHERAL SYNTHESIZER FOR INTEL SERVERS
9FGP204BKLFT
ActiveRenesas Electronics Corporation
CK-MNG+ PERIPHERAL SYNTHESIZER FOR INTEL SERVERS
Description
General part information
9FGP204 Series

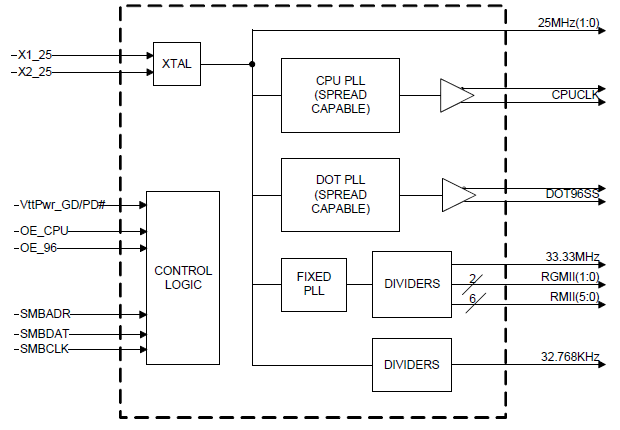

The 9FGP204 is a peripheral clock for Intel Servers. It is driven with a 25MHz crystal. An SMBus interface allows full control of the device.
Technical Specifications
Parameters and characteristics for this part
| Specification | 9FGP204BKLFT |
|---|---|
| Differential Input | No |
| Differential Output | Yes |
| Frequency - Max | 400 MHz |
| Input | Crystal |
| Input Ratio | 1 |
| Main Purpose | Intel CPU Servers |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output | Clock |
| Output Ratio | 14 |
| Package / Case | 40-VFQFN Exposed Pad |
| Package Name | 40-VFQFPN |
| PLL | Yes |
| Voltage - Supply (Maximum) | 3.465 V |
| Voltage - Supply (Minimum) | 3.135 V |
