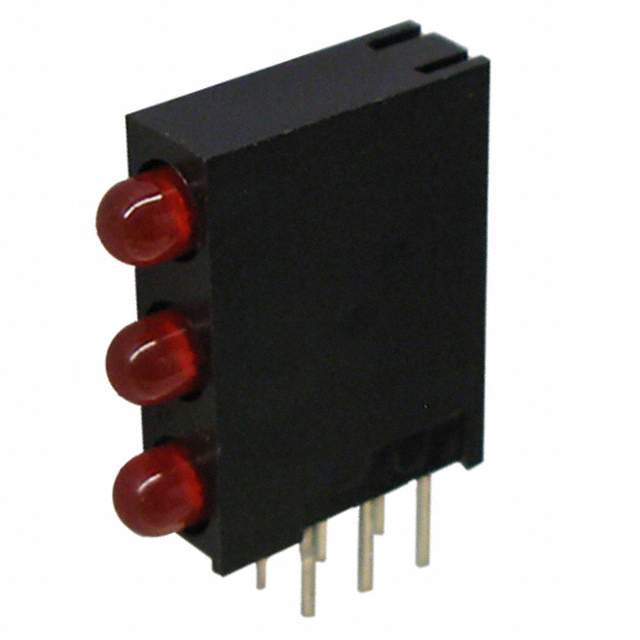

XPZ3LUR147D

Active

SunLED

LED CBI 3MM 3X1 RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPZ3LUR147D

Active

SunLED

LED CBI 3MM 3X1 RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPZ3LUR147D

Color	Red
Configuration	3 High
Current	160 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	11 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.9 V
Wavelength - Peak	627 nm

XPZ3LUR147 Series

Part	Configuration	Lens Type	Wavelength - Peak	Lens Style	Mounting Type	Voltage Rating	Millicandela Rating	Viewing Angle [custom]	Color	Current	Lens Size	Lens Size
SunLED XPZ3LUR147D	3 High	Diffused Tinted	627 nm	Round with Domed Top	Through Hole Right Angle	1.9 V	11 mcd	40 °	Red	160 mA	3 mm	T-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	750	$ 0.57

Description

General part information

XPZ3LUR147 Series

LED Circuit Board Indicator LED Circuit Board Indicator 3 High Red (x 3) Diffused, Tinted 1.9V 160mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
