RP604K301A-TR

Active

Nisshinbo Micro Devices Inc

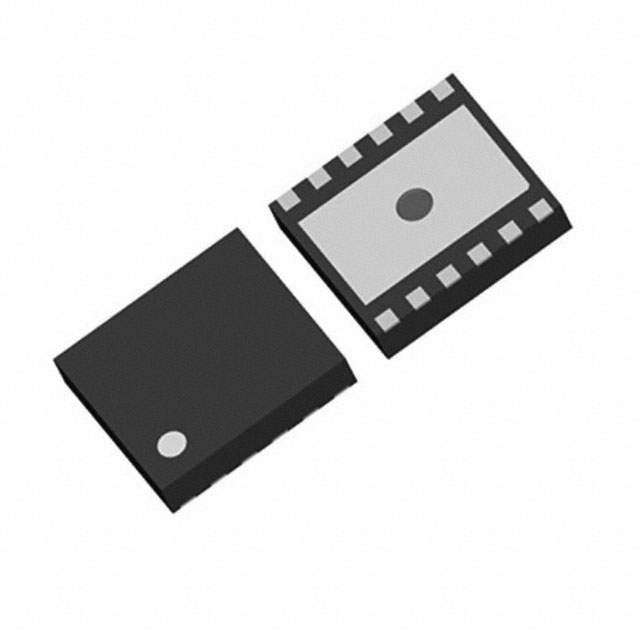

IC REG BUCK-BOOST 3V 300MA 12DFN

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG BUCK-BOOST 3V 300MA 12DFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck-Boost Switching Regulator IC Positive Fixed 3V 1 Output 300mA 12-UFDFN Exposed Pad

Technical documentation and resources

Specification	RP604K301A-TR	RP604 Series

Current - Output	300 mA	300 mA
Function	Step-Up/Step-Down	Step-Up/Step-Down, Step-Down, Step-Up
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	12-UFDFN Exposed Pad	12-UFDFN Exposed Pad, 20-XFBGA, WLCSP
Supplier Device Package	DFN(PL)2730-12	DFN(PL)2730-12, WLCSP-20-P2
Synchronous Rectifier	False	False
Topology	Buck-Boost	Buck-Boost
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	1.8 V	1.8 V
Voltage - Output (Min/Fixed)	-	2.5 - 3.3 V

Part	Mounting Type	Topology	Supplier Device Package	Voltage - Input (Max) [Max]	Function	Current - Output	Voltage - Input (Min) [Min]	Package / Case	Output Configuration	Number of Outputs	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)
Nisshinbo Micro Devices Inc RP604K301A-TR	Surface Mount	Buck-Boost	DFN(PL)2730-12	5.5 V	Step-Up/Step-Down	300 mA	1.8 V	12-UFDFN Exposed Pad	Positive	1	1.81 mOhm	85 °C	-40 °C
Nisshinbo Micro Devices Inc RP604Z251B-E2-F	Surface Mount	Buck-Boost	WLCSP-20-P2	5.5 V	Step-Up/Step-Down	300 mA	1.8 V	20-XFBGA, WLCSP	Positive	1	1.81 mOhm	85 °C	-40 °C	2.5 V
Nisshinbo Micro Devices Inc RP604K331A-TR	Surface Mount	Buck-Boost	DFN(PL)2730-12	5.5 V	Step-Down, Step-Up	300 mA	1.8 V	12-UFDFN Exposed Pad	Positive	1	1.81 mOhm	85 °C	-40 °C	3.3 V
