EDAC Inc.

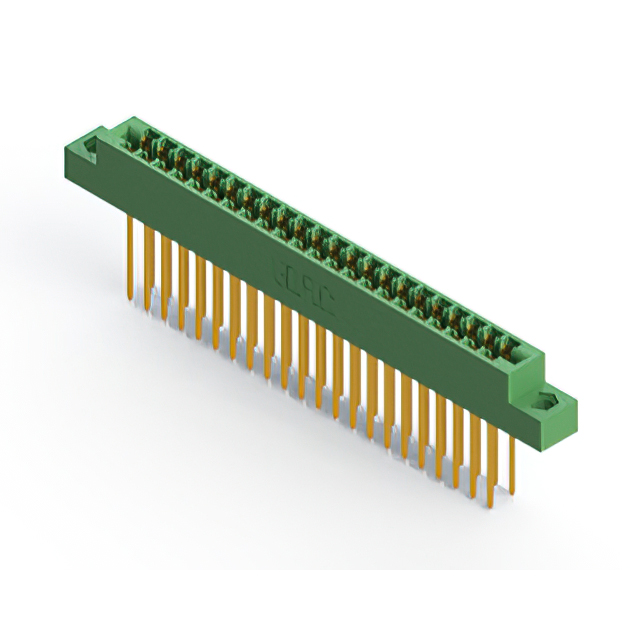

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

338-044-541-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	338-044-541-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

338-044 Series

Part	Contact Finish	Termination	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Flange Feature	Number of Positions	Pitch [x]	Pitch [x]	Gender	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Material	Contact Type	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Termination Rows	Card Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 338-044-541-258	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Card Guides
EDAC Inc. 338-044-541-268	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Card Guides
EDAC Inc. 338-044-541-207	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Flush Mount M3-0.5 Threaded Insert Top Opening	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge
EDAC Inc. 338-044-541-204	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Flush Mount Top Opening Unthreaded	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		3.96 mm	0.156 in
EDAC Inc. 338-044-541-201	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole		44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge
EDAC Inc. 338-044-541-278	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Card Guides
EDAC Inc. 338-044-541-208	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge
EDAC Inc. 338-044-541-203	Gold	Wire Wrap	22	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Floating Bobbin Flush Mount	44	0.156 in	3.96 mm	Female	Dual	125 °C	-65 ░C	2	Copper Alloy	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge		2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 60.24
Newark	Each	1	$ 72.30
		100	$ 63.26
		250	$ 56.23
		500	$ 50.62
		1000	$ 38.66

Description

General part information

338-044 Series

44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
