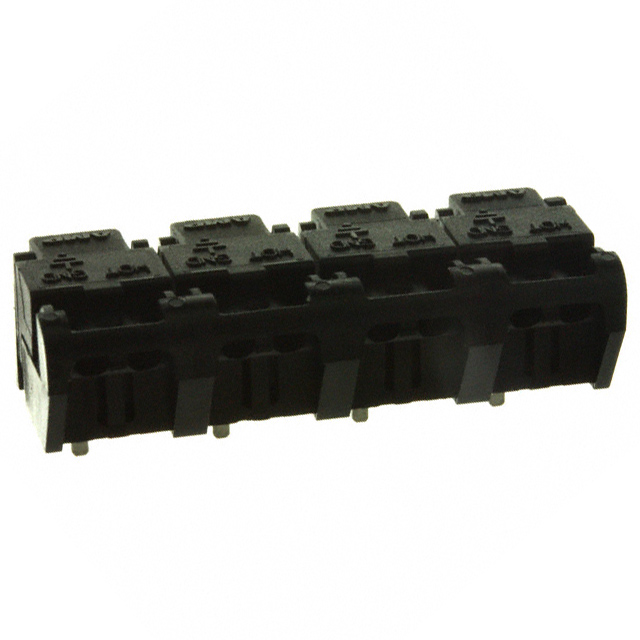

1339312-1

Active

TE Connectivity AMP Connectors

CONN WIRE IDC 8P 22-26AWG PCB RA

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN WIRE IDC 8P 22-26AWG PCB RA

Technical Specifications

Parameters and characteristics for this part

CONN WIRE IDC 8P 22-26AWG PCB RA

Part	Contact Finish	Number of Rows	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Features	Number of Positions Loaded	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type
TE Connectivity AMP Connectors 1339312-1	Tin	1	IDC	22 AWG	26 AWG	Double Entry	All	Black	150 µin	150 Áin	Individual Wires	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (4 Pair) Position Individual Wires Connector Black IDC 22-26 AWG Through Hole, Right Angle
