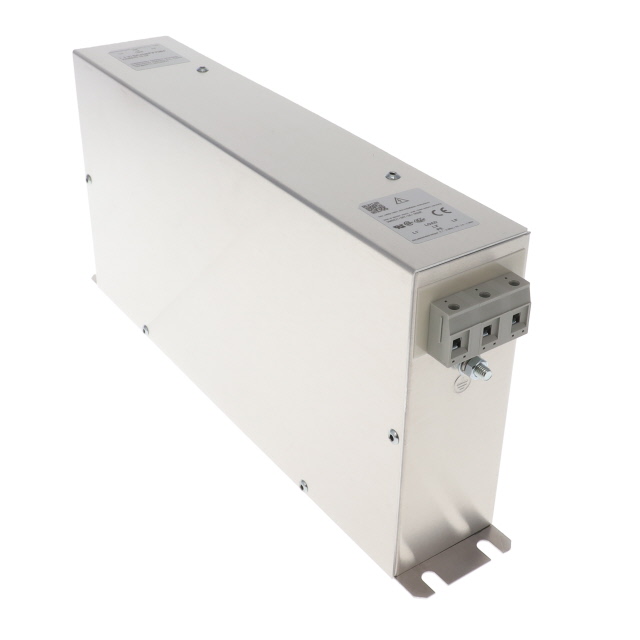

FN258HV-16-29

Obsolete

TE Connectivity Raychem Cable Protection

THREE PHASE EMI FILTER, 690V, 60HZHZ, ROHS COMPLIANT PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN258HV-16-29

Obsolete

TE Connectivity Raychem Cable Protection

THREE PHASE EMI FILTER, 690V, 60HZHZ, ROHS COMPLIANT PACKAGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN258HV-16-29

Applications	Power Drive Systems, Inverters
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	16 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	400 V
Voltage - Rated AC (Phase to Phase)	690 V

FN258 Series

Part	Filter Type	Applications	Termination Style	Operating Temperature [custom]	Approval Agency	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Configuration	Voltage - Rated AC (Phase to Phase)
TE Connectivity Raychem Cable Protection FN258HV-55-34	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC	400 V	55 A	Two Stage	690 V
TE Connectivity Raychem Cable Protection FN258HV-16-29	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC	400 V	16 A	Two Stage	690 V
TE Connectivity Raychem Cable Protection FN258-30-33	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		30 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258-250-40	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		250 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258-30-33	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		30 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258-42-07	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		42 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258HV-75-34	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC	400 V	75 A	Two Stage	690 V
TE Connectivity Raychem Cable Protection FN258-42-33	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		42 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258-180-07	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC		180 A	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258HV-42-33	Three Phase (Delta)	Inverters Power Drive Systems	Terminal Block	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	60 Hz	DC	400 V	42 A	Two Stage	690 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FN258 Series

Three Phase (Delta) EMC/EMI Line Filter 16 A DC ~ 60Hz Two Stage Terminal Block
