3-794623-2

Active

TE Connectivity AMP Connectors

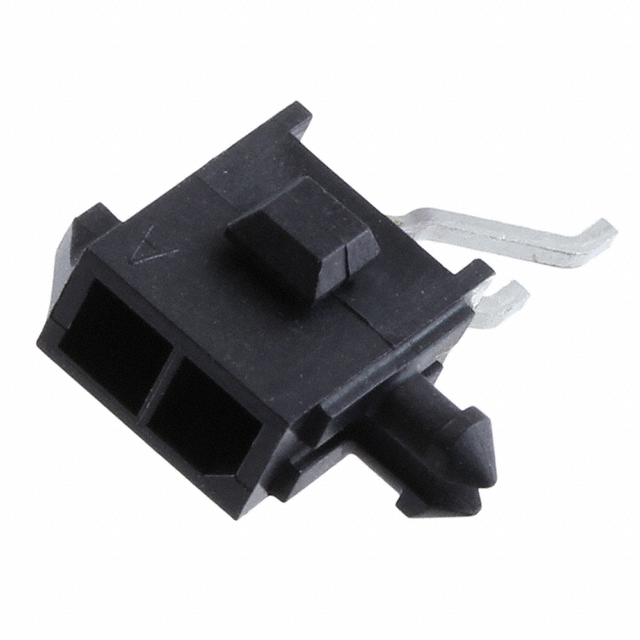

CONN HEADER SMD R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-794623-2

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.09

Description

General part information

794623 Series

Connector Header Surface Mount, Right Angle 2 position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794623-2	794623 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	2	2 - 10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	-	0.118 in
Pitch - Mating	-	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794623 Series

CONN HEADER SMD R/A 2POS

Part	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Contact Material	Insulation Color	Style	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Termination	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Type	Applications	Shrouding	Connector Type	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 3-794623-2	2	Varies by Wire Gauge	7.37 mm	0.29 in	Surface Mount, Right Angle	Brass	Black	Board to Cable/Wire	UL94 V-0	30 Áin	0.76 Ám	2.54 µm	100 µin	Tin	Nylon, Polyamide (PA)	-40 °C	105 ░C	Gold	All	Square	Solder	3 mm	0.118 in	250 VDC	Male Pin	General Purpose	Shrouded - 4 Wall	Header	Locking Ramp	2
