2-1437537-1

Obsolete

TE Connectivity Raychem Cable Protection

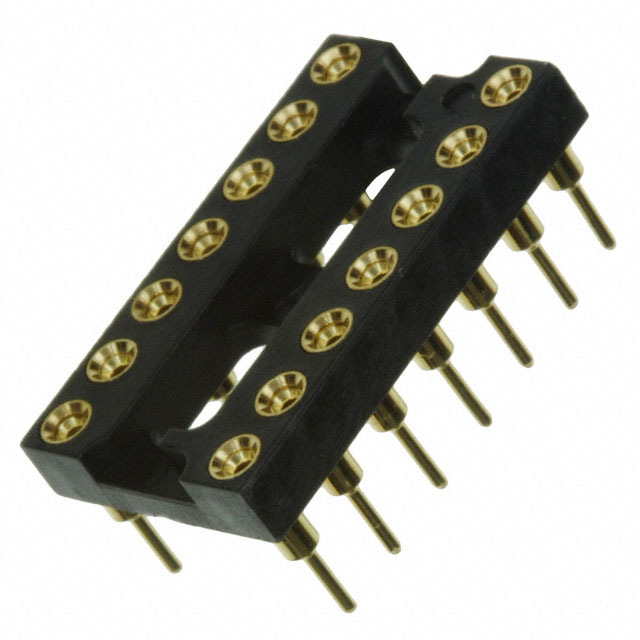

CONN IC DIP SOCKET 14POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 14POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	2-1437537-1

Contact Finish - Mating	Gold
Contact Material - Mating	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Type	Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Features	Pitch - Post	Pitch - Post	Current Rating (Amps)	Housing Material	Contact Material - Mating	Material Flammability Rating	Contact Resistance	Number of Positions or Pins (Grid)	Termination	Termination Post Length	Termination Post Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post [custom]	Contact Finish - Post
TE Connectivity Raychem Cable Protection 4-1437537-0
TE Connectivity Raychem Cable Protection 2-1437537-1	105 ░C	-55 °C	Through Hole	0.3 "	7.62 mm	DIP	Gold	0.1 in	2.54 mm	Open Frame	2.54 mm	0.1 in	3 A	Polyester	Copper Alloy	UL94 V-0	10 mOhm	14	Solder	3.18 mm	0.125 in
TE Connectivity Raychem Cable Protection 9-1437537-3	105 ░C	-55 °C	Through Hole	0.3 "	7.62 mm	DIP	Gold	0.1 in	2.54 mm	Open Frame	2.54 mm	0.1 in		Polyester	Copper Alloy	UL94 V-0	10 mOhm	3	Solder	3.18 mm	0.125 in	2.03 µm	80 µin	Copper Alloy	Tin-Lead
TE Connectivity Raychem Cable Protection 3-1437537-5	105 ░C	-55 °C	Through Hole	0.3 "	7.62 mm	DIP	Gold	0.1 in	2.54 mm	Open Frame	2.54 mm	0.1 in	3 A	Polyester	Copper Alloy	UL94 V-0	10 mOhm	14	Solder	3.18 mm	0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
