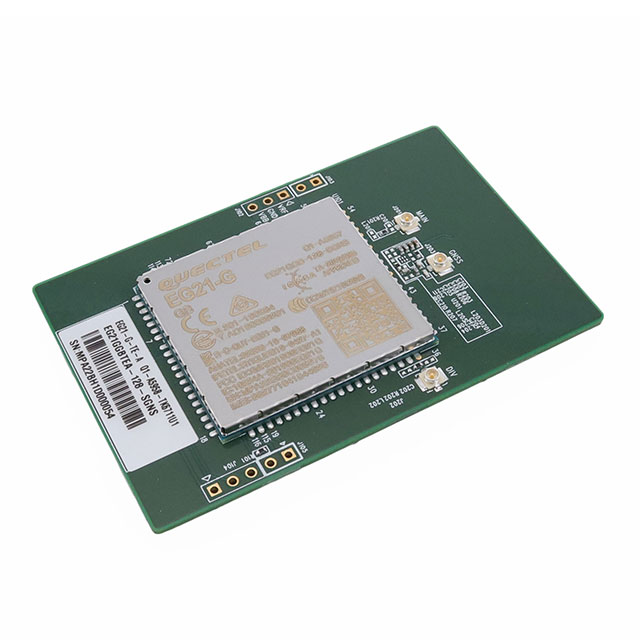

EG21GGBTEA-128-SGNS

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MOD CEL/NAV CARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.50

General part information

Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EG21GGBTEA-128-SGNS	EG21 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	42 Mbps	42 Mbps
Mounting Type	Card Edge	Card Edge
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Package / Case	Module	Module
Power - Output	33 dBm	33 dBm
Protocol	Beidou, HSPA+, UMTS, GSM, GNSS, GLONASS, Galileo, LTE, WCDMA, GPRS, GPS, EDGE	Beidou, HSPA+, UMTS, GSM, GNSS, GLONASS, Galileo, LTE, WCDMA, GPRS, GPS, EDGE
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-110.5 dBm	-110.5 dBm
Serial Interfaces	USB, I2C, PCM, UART	USB, I2C, PCM, UART
Utilized IC / Part	-	MDM9207-1
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD CEL/NAV CARD

Part	Power - Output	Package / Case	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Antenna Type	RF Family/Standard	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Protocol	Sensitivity	Utilized IC / Part
Quectel EG21GGB-128-SGNS	33 dBm	Module	I2C, PCM, UART, USB	3.6 V	3 V	Card Edge	Antenna Not Included	Cellular, Navigation	-30 ░C	75 ░C	42 Mbps	Beidou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE, UMTS, WCDMA	-110.5 dBm	MDM9207-1
Quectel EG21GGB-MINIPCIE-S	33 dBm	Module	I2C, PCM, UART, USB	3.6 V	3 V	Card Edge	Antenna Not Included	Cellular, Navigation	-30 ░C	75 ░C	42 Mbps	Beidou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE, UMTS, WCDMA	-110.5 dBm	MDM9207-1
Quectel EG21GGBTEA-128-SGNS	33 dBm	Module	I2C, PCM, UART, USB	3.6 V	3 V	Card Edge	Antenna Not Included	Cellular, Navigation	-30 ░C	75 ░C	42 Mbps	Beidou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE, UMTS, WCDMA	-110.5 dBm
Quectel EG21GGB-MINIPCIE	33 dBm	Module	I2C, PCM, UART, USB	3.6 V	3 V	Card Edge	Antenna Not Included	Cellular, Navigation	-30 ░C	75 ░C	42 Mbps	Beidou, EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, LTE, UMTS, WCDMA	-110.5 dBm	MDM9207-1
