MAX98089EVKIT#WLP

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX98089-WLP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX98089-WLP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX98089EVKIT#WLP	MAX98089 Series

Data Interface	-	Serial, I2C
Dynamic Range, ADCs / DACs (db) Typ	-	93 db
Dynamic Range, ADCs / DACs (db) Typ	-	101 db
Function	CODEC	CODEC
Mounting Type	-	Surface Mount
Number of ADCs / DACs	-	2
Number of ADCs / DACs	-	2
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	56-WFQFN Exposed Pad, WLBGA, 63-WFBGA
Primary Attributes [Max]	5.5 V	5.5 V
Primary Attributes [Min]	2.8 V	2.8 V
Resolution (Bits)	-	24 b
S/N Ratio, ADCs / DACs (db) Typ	-	93 db
S/N Ratio, ADCs / DACs (db) Typ	-	101 db
Sigma Delta	-	False
Supplied Contents	Cable(s), Board(s)	Cable(s), Board(s)
Supplier Device Package	-	56-TQFN (7x7), 63-WLP
Supplier Device Package	-	3.78
Supplier Device Package	-	3.28
Type	Audio	Stereo Audio, Audio
Utilized IC / Part	MAX98089	MAX98089
Voltage - Supply, Analog	-	2 V
Voltage - Supply, Analog	-	1.65 V
Voltage - Supply, Digital	-	1.65 V
Voltage - Supply, Digital	-	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 209.25

IC CODEC AUDIO FLEXSOUND 56TQFN

Part	Package / Case	Dynamic Range, ADCs / DACs (db) Typ [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Mounting Type	Resolution (Bits)	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Supplier Device Package	Type	Supplier Device Package [y]	Supplier Device Package [x]	Function	Supplied Contents	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX98089ETN+	56-WFQFN Exposed Pad	93 db	101 db	Surface Mount	24 b	85 °C	-40 °C	I2C, Serial	1.65 V	3.6 V	2	2	2 V	1.65 V	93 db	101 db	56-TQFN (7x7)	Stereo Audio
Analog Devices Inc./Maxim Integrated MAX98089EWY+T	63-WFBGA, WLBGA	93 db	101 db	Surface Mount	24 b	85 °C	-40 °C	I2C, Serial	1.65 V	3.6 V	2	2	2 V	1.65 V	93 db	101 db	63-WLP	Stereo Audio	3.78	3.28
Analog Devices Inc./Maxim Integrated MAX98089EVKIT#TQFN																		Audio			CODEC	Board(s), Cable(s)	5.5 V	2.8 V	MAX98089
Analog Devices Inc./Maxim Integrated MAX98089ETN+T	56-WFQFN Exposed Pad	93 db	101 db	Surface Mount	24 b	85 °C	-40 °C	I2C, Serial	1.65 V	3.6 V	2	2	2 V	1.65 V	93 db	101 db	56-TQFN (7x7)	Stereo Audio
Analog Devices Inc./Maxim Integrated MAX98089EVKIT#WLP																		Audio			CODEC	Board(s), Cable(s)	5.5 V	2.8 V	MAX98089

General part information

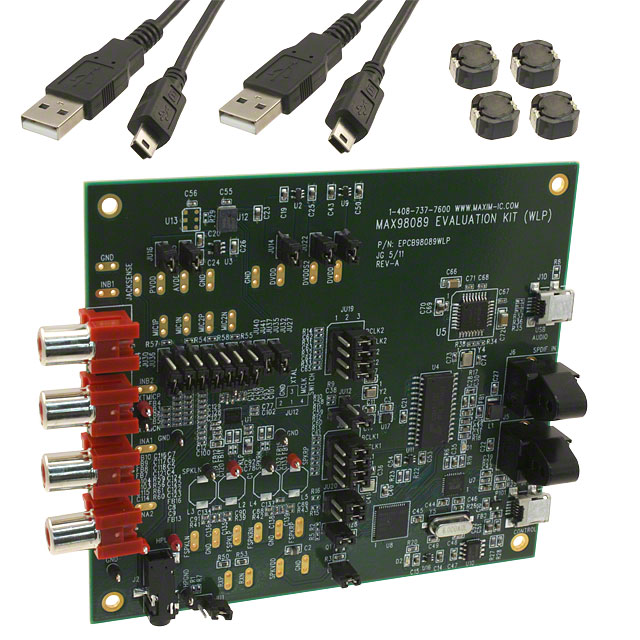

MAX98089 CODEC Audio Evaluation Board
