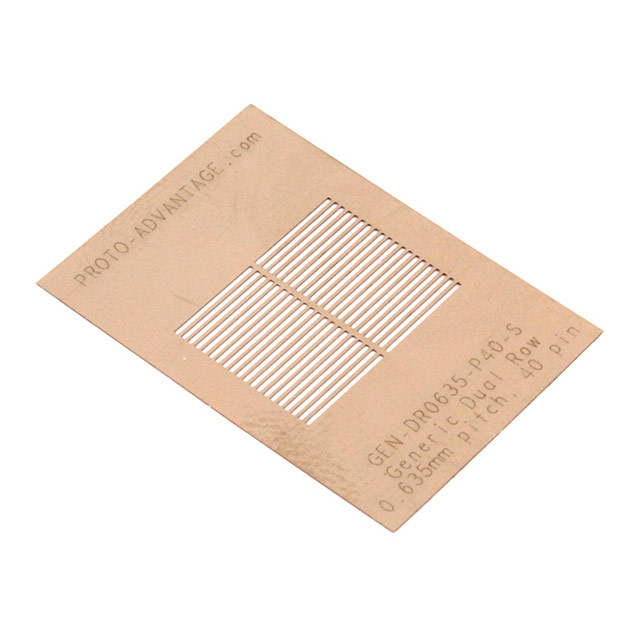

GEN-DR0635-P40-S

Active

Chip Quik Inc.

GENERIC DUAL ROW 0.635MM PITCH 4

Search across all available documentation for this part.

Active

Chip Quik Inc.

GENERIC DUAL ROW 0.635MM PITCH 4

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GEN-DR0635-P40-S	GEN-D Series

Material	Stainless Steel	Stainless Steel, FR4 Epoxy Glass
Number of Positions	40	40 - 60
Package Accepted	-	0.4mm Connector
Pitch [x]	0.64 mm	0.4 - 0.8 mm
Pitch [x]	0.025 in	0.016 - 0.031 in
Proto Board Type	-	SMD to DIP
Size / Dimension	-	50.8 - 76.2 mm
Size / Dimension	-	25.4 mm
Size / Dimension	-	25.4 mm
Size / Dimension	-	2 - 3 "

GENERIC DUAL ROW 0.4MM PITCH 60-

Part	Pitch [x]	Pitch [x]	Material	Number of Positions	Proto Board Type	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Chip Quik Inc. GEN-DR040-P60-S	0.016 in	0.4 mm	Stainless Steel	60
Chip Quik Inc. GEN-DR040-P60	0.016 in	0.4 mm	FR4 Epoxy Glass	60	SMD to DIP	0.4mm Connector	76.2 mm	25.4 mm	25.4 mm	3 "
Chip Quik Inc. GEN-DR0635-P40	0.025 in	0.64 mm	FR4 Epoxy Glass	40	SMD to DIP		50.8 mm	25.4 mm	25.4 mm	2 in
Chip Quik Inc. GEN-DR0635-P40-S	0.025 in	0.64 mm	Stainless Steel	40
Chip Quik Inc. GEN-DR080-P40-S	0.031 in	0.8 mm	Stainless Steel	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.99

General part information

GENERIC DUAL ROW 0.635MM PITCH 4
