ATP04-4P-BM03
ActiveAmphenol Sine Systems Corp
4 POSITION, STRAIGHT PCB RECEPTA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

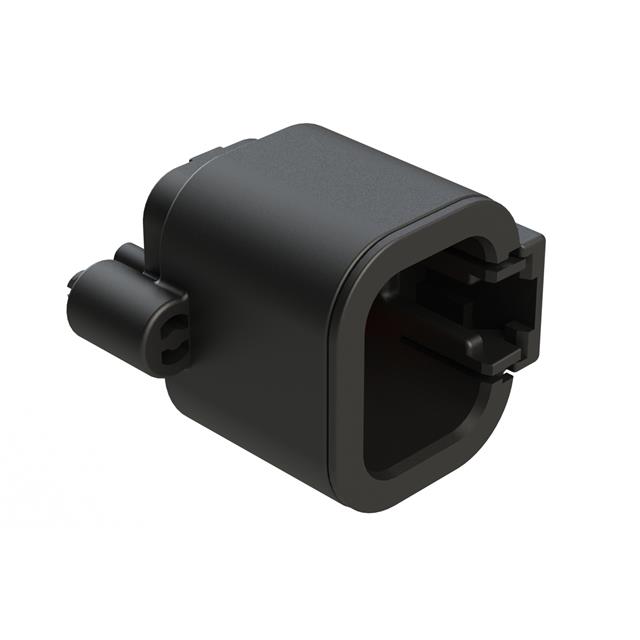

ATP04-4P-BM03
ActiveAmphenol Sine Systems Corp
4 POSITION, STRAIGHT PCB RECEPTA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP04-4P-BM03 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 25 A |
| Fastening Type | Latch Holder |
| Features | Board Lock, Sealed, Board Guide |
| Ingress Protection | IP68, IP69K |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 6.71 mm |
| Pitch - Mating | 0.264 in |
| Row Spacing - Mating | 10.16 mm |
| Row Spacing - Mating | 0.4 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
ATP04-4P Series
| Part | Ingress Protection | Number of Positions | Insulation Material | Style | Row Spacing - Mating | Row Spacing - Mating | Number of Rows | Fastening Type | Contact Shape | Contact Length - Post | Contact Length - Post | Termination | Insulation Color | Contact Material | Mounting Type | Contact Type | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Current Rating (Amps) | Contact Finish - Mating | Number of Positions Loaded | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Termination | Note | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | IP68 IP69K | 4 | Thermoplastic | Board to Cable/Wire | 10.16 mm | 0.4 in | 2 | Latch Holder | Circular | 0.146 in | 3.7 mm | Solder | Black | Copper Alloy | Through Hole | Male Pin | Shrouded - 4 Wall | 6.71 mm | 0.264 in | Gold | 25 A | Gold | All | Receptacle | -55 °C | 125 °C | Board Guide Board Lock Potting Wall Sealed | |||
Amphenol Sine Systems Corp | IP68 IP69K | 4 | Thermoplastic | Board to Cable/Wire | 10.16 mm | 0.4 in | 2 | Latch Holder | Circular | 0.146 in | 3.7 mm | Solder | Black | Copper Alloy | Through Hole | Male Pin | Shrouded - 4 Wall | 6.71 mm | 0.264 in | Gold | 25 A | Gold | All | Receptacle | -55 °C | 125 °C | Board Guide Sealed | |||
Amphenol Sine Systems Corp | IP68 IP69K | 4 | Thermoplastic | Board to Cable/Wire | 10.16 mm | 0.4 in | 2 | Latch Holder | Circular | 0.146 in | 3.7 mm | Solder | Black | Copper Alloy | Through Hole | Male Pin | Shrouded - 4 Wall | 6.71 mm | 0.264 in | Tin | 25 A | All | Receptacle | -55 °C | 125 °C | Board Guide Sealed | ||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Free Hanging (In-Line) | Male Pin | Receptacle | -55 °C | 125 °C | Sealed | Crimp | Contacts Not Included | Gray | |||||||||||||||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Free Hanging (In-Line) | Male Pin | Receptacle | -55 °C | 125 °C | Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief | Crimp | Black | ||||||||||||||||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Free Hanging (In-Line) | Male Pin | Receptacle | -55 °C | 125 °C | Cap (Cover) IP68 IP69K Reduced Wire Seals | Crimp | Black | ||||||||||||||||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Free Hanging (In-Line) | Male Pin | Receptacle | -55 °C | 125 °C | Cap (Cover) IP68 IP69K Reduced Wire Seals | Crimp | Gray | ||||||||||||||||||
Amphenol Sine Systems Corp | IP68 IP69K | 4 | Thermoplastic | Board to Cable/Wire | 10.16 mm | 0.4 in | 2 | Latch Holder | Circular | 0.146 in | 3.7 mm | Solder | Black | Copper Alloy | Through Hole | Male Pin | Shrouded - 4 Wall | 6.71 mm | 0.264 in | Tin | 25 A | All | Receptacle | -55 °C | 125 °C | Board Guide Board Lock Sealed | ||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Free Hanging (In-Line) | Male Pin | Receptacle | -55 °C | 125 °C | Crimp | Contacts Not Included | Gray | ||||||||||||||||||
Amphenol Sine Systems Corp | 4 | Thermoplastic | 2 | Latch Holder | Male Pin | Receptacle | -55 °C | 125 °C | Sealed | Crimp | Contacts Not Included | Black |
