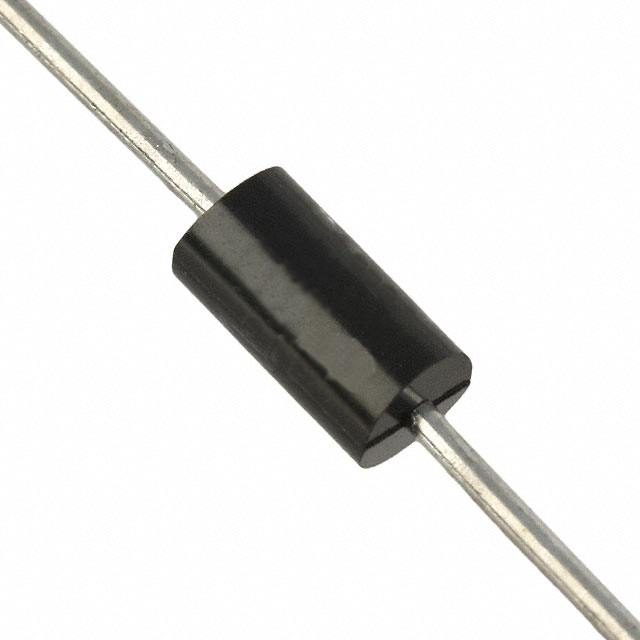

P6KE13CA

Active

Taiwan Semiconductor Corporation

TVS DIODE, 600W, 11.1V, BIDIR, DO-204AC

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

TVS DIODE, 600W, 11.1V, BIDIR, DO-204AC

Technical Specifications

Parameters and characteristics for this part

Specification	P6KE13CA

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	33 A
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	DO-15
Type	Zener
Voltage - Breakdown (Min) [Min]	12.4 V
Voltage - Clamping (Max) @ Ipp	18.2 V
Voltage - Reverse Standoff (Typ)	11.1 V

Part	Type	Current - Peak Pulse (10/1000µs)	Mounting Type	Power Line Protection	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]	Package / Case	Applications	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
Taiwan Semiconductor Corporation P6KE13CA	Zener	33 A	Through Hole		12.4 V	DO-15	1	Axial DO-15 DO-204AC	General Purpose	11.1 V	18.2 V	600 W
Taiwan Semiconductor Corporation P6KE13CA R0G	Zener	34 A	Through Hole		12.4 V	DO-204AC	1	Axial DO-15 DO-204AC	General Purpose	11.1 V	18.2 V	600 W	-55 °C	175 ░C	DO-15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18.2V Clamp 33A Ipp Tvs Diode Through Hole DO-15
