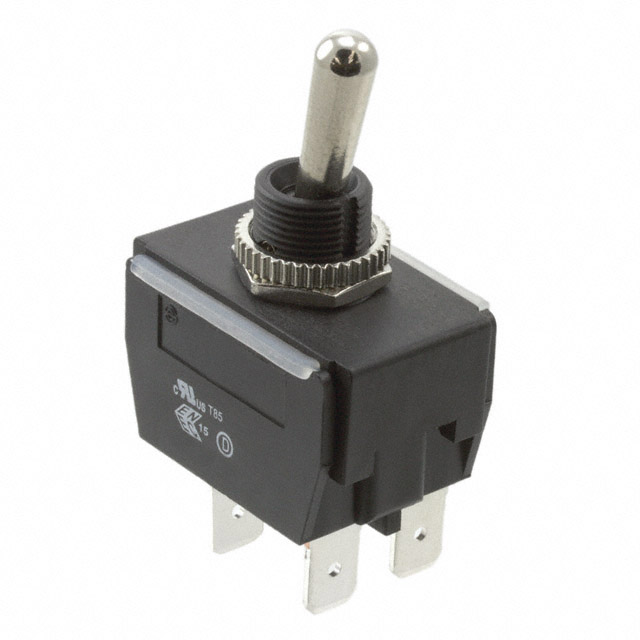

GTS448S101AHR

Active

CW Industries

SWITCH TOGGLE DPST-NO 16A 250V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE DPST-NO 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	GTS448S101AHR

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST-NO
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

SWITCH TOGGLE DPST-NO 16A 250V

Part	Voltage Rating - AC	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Switch Function	Termination Style	Illumination	Bushing Thread	Circuit	Actuator Length [x]	Electrical Life
CW Industries GTS448S101AHR	250 V	IP56 - Dust Protected, Water Resistant	0 °C	85 °C	12.2 mm	Standard Round	16 A	Off-Mom	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	15/32-32	DPST-NO	17.5 mm	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPST-NO Panel Mount
