TISP4395L3AJR-S

Active

Bourns Inc.

SINGLE BIDIRECTIONAL PROTECTOR /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

SINGLE BIDIRECTIONAL PROTECTOR /TAPE & REEL - 13" REEL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

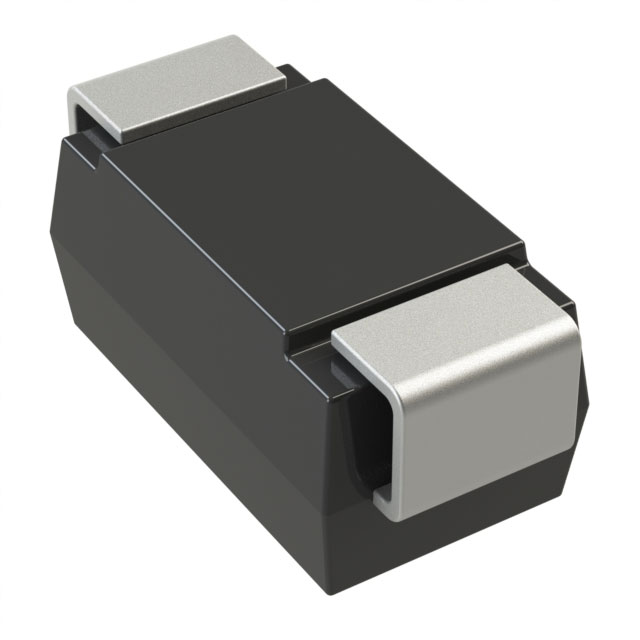

320V Off-State 100 A Ipp TVS Thyristor DO-214AC, SMA

Technical documentation and resources

Part	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Breakover	Capacitance	Current - Hold (Ih)	Number of Elements	Supplier Device Package	Package / Case	Voltage - Off State	Current - Peak Pulse (8/20µs)	Supplier Device Package	Voltage - On State	Package / Case
Bourns Inc. TISP4395L3AJR-S	Surface Mount	30 A	395 V	40 pF	150 mA	1	DO-214AC (SMA)	DO-214AC, SMA	320 V	100 A
Bourns Inc. TISP4395M3BJR-S	Surface Mount	50 A	395 V	83 pF	150 mA	1	DO-214AA	DO-214AA, SMB	320 V	220 A	SMB	3 V
Bourns Inc. TISP4395H3LM	Through Hole	100 A	395 V	62 pF	150 mA	1	DO-92	TO-226-2, TO-92-2	320 V	300 A		3 V	TO-226AC
Bourns Inc. TISP4395M3BJR	Surface Mount	50 A	395 V	83 pF	150 mA	1	DO-214AA	DO-214AA, SMB	320 V	220 A	SMB	3 V
Bourns Inc. TISP4395H3BJR-S	Surface Mount	100 A	395 V	55 pF	150 mA	1	DO-214AA	DO-214AA, SMB	320 V	300 A	SMB	3 V
