TPS92610EVM
ActiveTexas Instruments

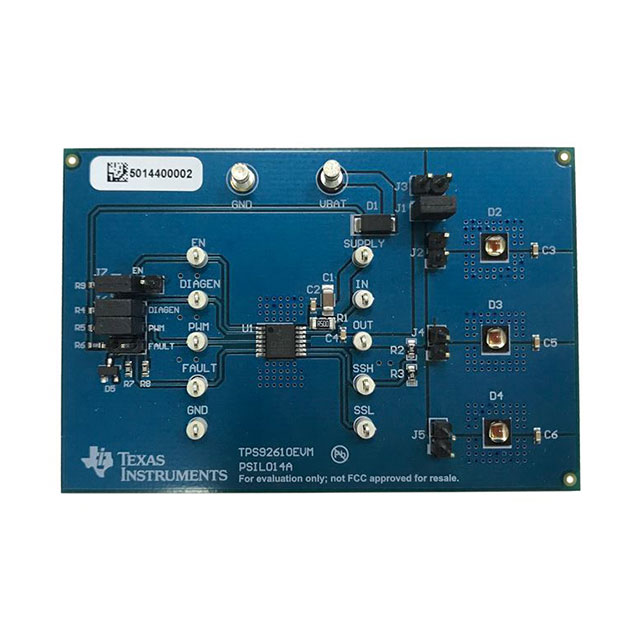

EVAL BOARD FOR TPS92610-Q1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS92610EVM
ActiveTexas Instruments
EVAL BOARD FOR TPS92610-Q1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS92610EVM | TPS92610 Series |
|---|---|---|
| Applications | - | Lighting |
| Current - Output / Channel [custom] | 200 mA | 200 mA |
| Dimming | - | PWM |
| Grade | - | Automotive |
| Internal Switch(s) | - | False |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Package / Case | - | 14-PowerTSSOP |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-HTSSOP |
| Type | - | Linear |
| Voltage - Input [Max] | 16 V | 16 V |
| Voltage - Input [Min] | 9 VDC | 9 VDC |
| Voltage - Output | - | 0 VDC |
| Voltage - Output | - | 40 V |
| Voltage - Supply (Max) | - | 40 V |
| Voltage - Supply (Min) | - | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS92610 Series
EVAL BOARD FOR TPS92610-Q1
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Outputs and Type | Current - Output / Channel [custom] | Supplied Contents | Supplier Device Package | Mounting Type | Voltage - Supply (Max) [Max] | Dimming | Voltage - Output [Min] | Voltage - Output [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Supply (Min) [Min] | Package / Case [y] | Package / Case | Package / Case | Grade | Qualification | Internal Switch(s) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16 V | 9 VDC | Non-Isolated | 1 | 200 mA | Board(s) | |||||||||||||||||||
Texas Instruments TPS92610QPWPRQ1With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system level component counts and significantly improves current accuracy and reliability.
The TPS92610-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string with full LED diagnostics. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements.
With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Compared to discrete solutions, a low-cost monolithic solution lowers system level component counts and significantly improves current accuracy and reliability.
The TPS92610-Q1 device is a simple single-channel high-side LED driver operating from an automotive car battery. It is a simple and elegant solution to deliver constant current for a single LED string with full LED diagnostics. Its one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS9283x-Q1 devices, to address different requirements. | 14-HTSSOP | Surface Mount | 40 V | PWM | 0 VDC | 40 V | Lighting | -40 °C | 125 °C | 1 | 4.5 V | 4.4 mm | 0.173 in | 14-PowerTSSOP | Automotive | AEC-Q100 | Linear |
Description
General part information
TPS92610 Series
TPS92610-Q1 1, Non-Isolated Outputs LED Driver Evaluation Board
