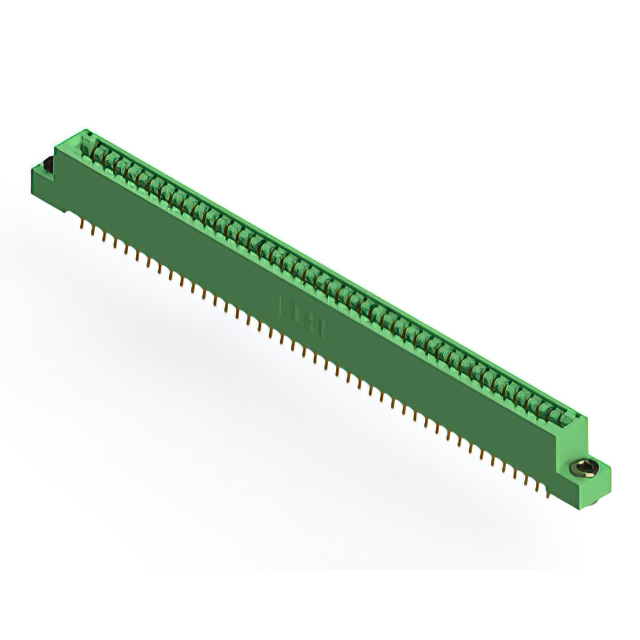

846-086-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-086-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-086-556-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

846-086 Series

...

Part	Number of Rows	Pitch [x]	Pitch [x]	Material - Insulation	Number of Positions	Contact Finish	Mounting Type	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Termination	Color	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Features
EDAC Inc. 846-086-500-203	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder Eyelet(s)	Green	Cantilever	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-520-204	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-559-207	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole Right Angle	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever		Flush Mount M3 Threaded Insert Top Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-500-207	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder Eyelet(s)	Green	Cantilever		Flush Mount M3 Threaded Insert Top Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-556-212	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Board Edge Straddle Mount	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy	Card Extender
EDAC Inc. 846-086-522-208	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-559-208	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole Right Angle	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-559-804	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole Right Angle	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy
EDAC Inc. 846-086-556-203	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Board Edge Straddle Mount	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy	Card Extender
EDAC Inc. 846-086-522-807	2	0.125 in	3.18 mm	Diallyl Phthalate (DAP)	86	Gold	Through Hole	Non Specified - Dual Edge	125 °C	-40 °C	43	Solder	Green	Cantilever		M3 Threaded Insert Top Mount Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Dual	10 Áin	0.25 Ám	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 113.87
Newark	Each	1	$ 131.45
		100	$ 92.86
		250	$ 82.77
		500	$ 69.68
		1000	$ 57.50

Description

General part information

846-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
