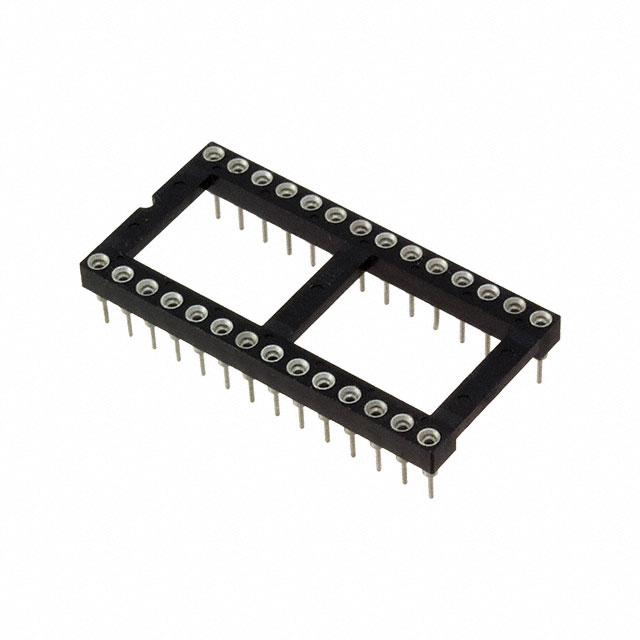

ICA-628-STT

Active

Samtec Inc.

CONN IC DIP SOCKET 28POS TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN IC DIP SOCKET 28POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	ICA-628-STT

Contact Finish - Post	Tin
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Type	Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Material - Post [custom]	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Post	Contact Resistance	Material Flammability Rating	Features	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. ICA-628-STT	DIP	0.6 in	15.24 mm	105 ░C	-55 °C	28	Beryllium Copper	Brass	3.18 mm	0.125 in	1 A	Tin	10 mOhm	UL94 V-0	Open Frame	0.1 in	2.54 mm	Solder	Through Hole	2.54 mm	0.1 in
Samtec Inc. ICA-628-SST	DIP	0.6 in	15.24 mm	125 °C	-55 °C	28	Beryllium Copper	Brass	3.18 mm	0.125 in	1 A	Tin	10 mOhm	UL94 V-0	Open Frame	0.1 in	2.54 mm	Solder	Through Hole	2.54 mm	0.1 in	10 çin	0.25 çm	Gold	10 çin	0.25 çm
