M30-6100346
ActiveHarwin Inc.

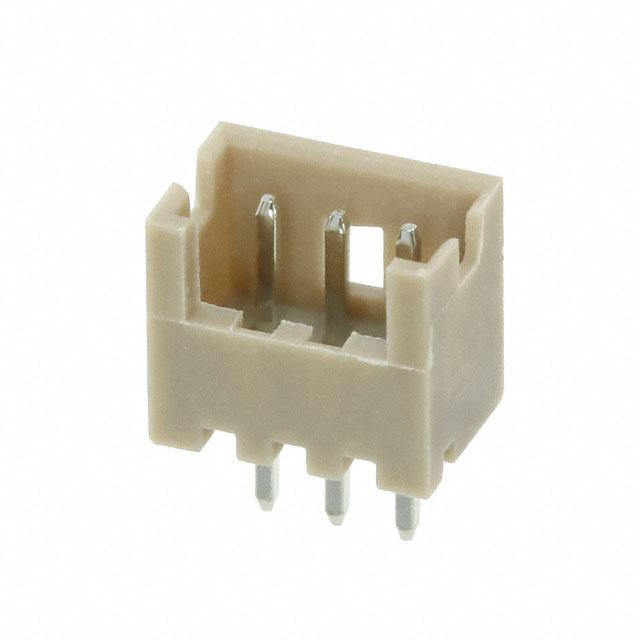

WIRE-TO-BOARD CONNECTOR, M30-6 SERIES, THROUGH HOLE, PLUG, 3, 1.25 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M30-6100346
ActiveHarwin Inc.
WIRE-TO-BOARD CONNECTOR, M30-6 SERIES, THROUGH HOLE, PLUG, 3, 1.25 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M30-6100346 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.03 µm |
| Contact Finish Thickness - Mating | 80 µin |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height | 4.3 mm |
| Insulation Height | 0.169 " |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 5.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
M30-610 Series
| Part | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insulation Color | Mounting Type | Style | Insulation Height | Insulation Height | Mated Stacking Heights | Contact Finish - Post | Termination | Contact Type | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Shrouding | Voltage Rating | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | UL94 V-0 | Detent Lock | -25 °C | 85 °C | Brass | Natural | Through Hole | Board to Cable/Wire | 4.3 mm | 0.169 " | 5.4 mm | Tin | Solder | Male Pin | 0.091 in | 2.3 mm | 1 A | Header | All | Shrouded - 4 Wall | 100 V | 1.25 mm | 0.049 in | 1 | Polyamide (PA66) Nylon 6/6 | 2.03 µm | 80 µin | Square | 7 |
Harwin Inc. | UL94 V-0 | Detent Lock | -25 °C | 85 °C | Brass | Natural | Through Hole | Board to Cable/Wire | 4.3 mm | 0.169 " | 5.4 mm | Tin | Solder | Male Pin | 0.091 in | 2.3 mm | 1 A | Header | All | Shrouded - 4 Wall | 100 V | 1.25 mm | 0.049 in | 1 | Polyamide (PA66) Nylon 6/6 | 2.03 µm | 80 µin | Square | 11 |
Harwin Inc. | UL94 V-0 | Detent Lock | -25 °C | 85 °C | Brass | Natural | Through Hole | Board to Cable/Wire | 4.3 mm | 0.169 " | 5.4 mm | Tin | Solder | Male Pin | 0.091 in | 2.3 mm | 1 A | Header | All | Shrouded - 4 Wall | 100 V | 1.25 mm | 0.049 in | 1 | Polyamide (PA66) Nylon 6/6 | 2.03 µm | 80 µin | Square | 12 |
Harwin Inc. | UL94 V-0 | Detent Lock | -25 °C | 85 °C | Brass | Natural | Through Hole | Board to Cable/Wire | 4.3 mm | 0.169 " | 5.4 mm | Tin | Solder | Male Pin | 0.091 in | 2.3 mm | 1 A | Header | All | Shrouded - 4 Wall | 100 V | 1.25 mm | 0.049 in | 1 | Polyamide (PA66) Nylon 6/6 | 2.03 µm | 80 µin | Square | 15 |
Harwin Inc. | UL94 V-0 | Detent Lock | -25 °C | 85 °C | Brass | Natural | Through Hole | Board to Cable/Wire | 4.3 mm | 0.169 " | 5.4 mm | Tin | Solder | Male Pin | 0.091 in | 2.3 mm | 1 A | Header | All | Shrouded - 4 Wall | 100 V | 1.25 mm | 0.049 in | 1 | Polyamide (PA66) Nylon 6/6 | 2.03 µm | 80 µin | Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M30-610 Series
Connector Header Through Hole 3 position 0.049" (1.25mm)
Documents
Technical documentation and resources
