172224-13

Active

Amphenol RF

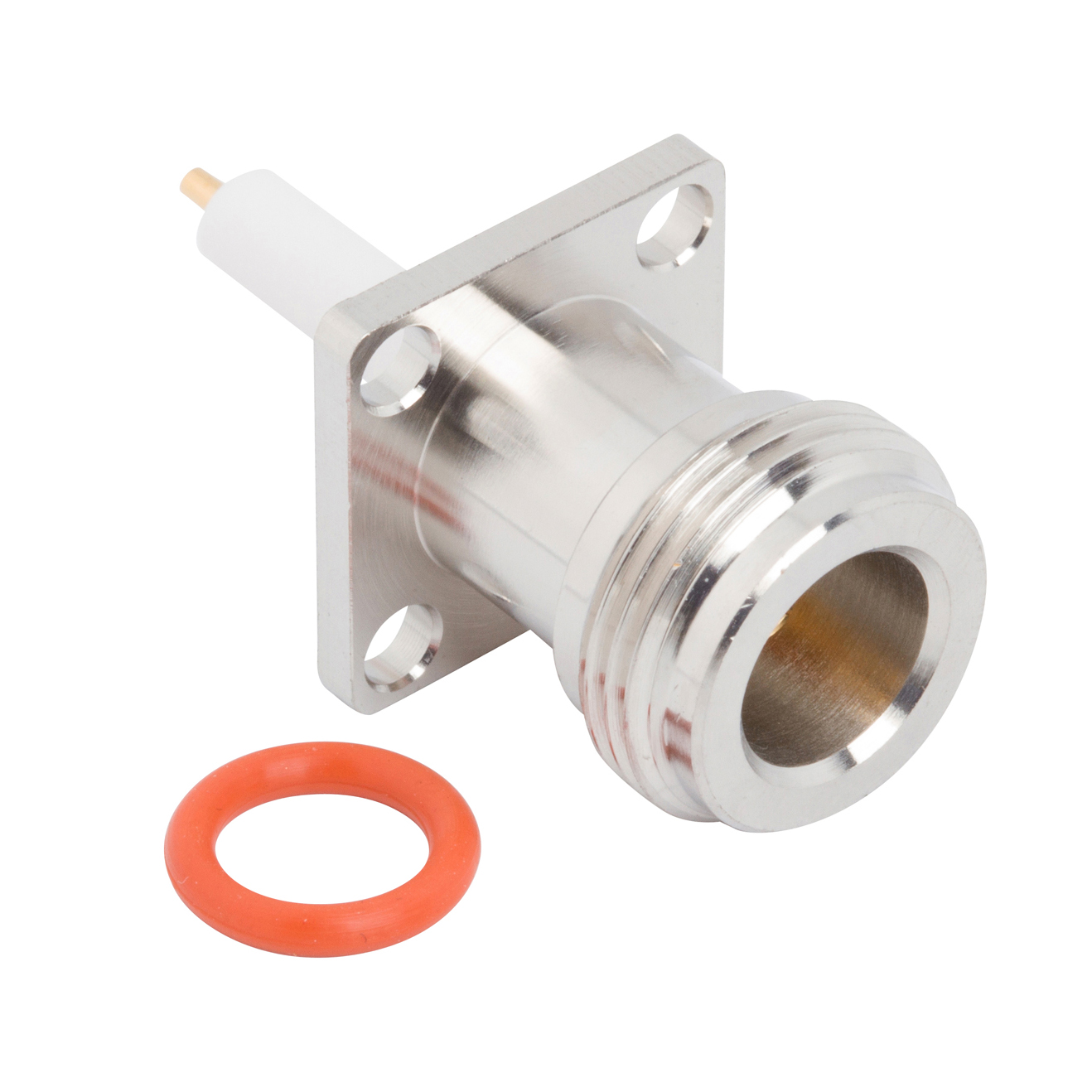

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	172224-13

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Gasket
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Ingress Protection	Number of Ports	Insertion Loss	Center Contact Plating	Center Contact Material	Body Finish	Mounting Feature	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Frequency - Max [Max]	Features	Voltage Rating	Mating Cycles	Connector Style	Contact Termination	Shield Termination	Body Material	Housing Color	Dielectric Material	Includes
Amphenol RF 172224-13	Weatherproof	1	0.15 dB	Gold	Phosphor Bronze	White Bronze	Flange	50 Ohms	-65 ░C	165 °C	Female Socket Receptacle	11 GHz	Extended Insulation	1500 V	500	N Type	Solder	Solder	Brass	Silver	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket
Amphenol RF 172224-24		1		Gold	Phosphor Bronze	White Bronze	Flange	50 Ohms	-65 ░C	165 °C	Female Socket Jack	11 GHz	Extended Insulation		500	N Type	Solder	Solder	Brass	Silver	Polytetrafluoroethylene (PTFE)	1 Connector 1 Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.18

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
