68175-1005
Amphenol RF

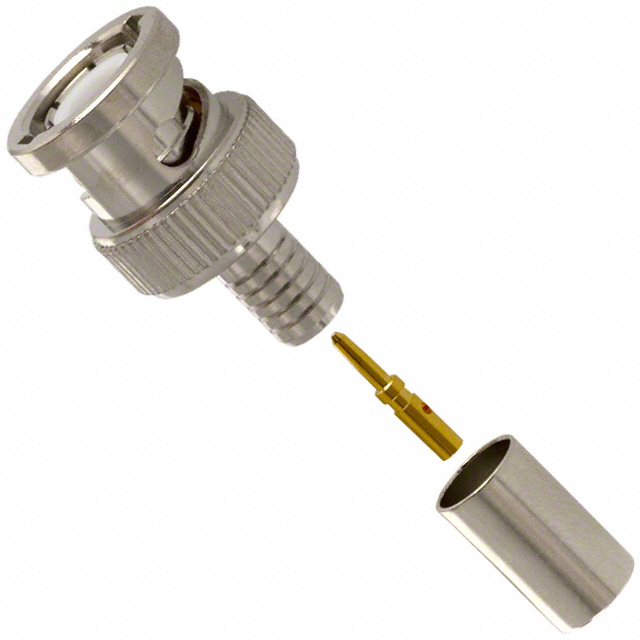

CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
68175-1005
Amphenol RF
CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 68175-1005 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 9278, Belden 1426A, RG-59, 8281, 9100, 1505A |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder, Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.11 | |
| 10 | $ 8.59 | |||
| 25 | $ 8.05 | |||
| 50 | $ 7.67 | |||
| 100 | $ 7.30 | |||
| 250 | $ 6.84 | |||
| 500 | $ 6.52 | |||
| 1000 | $ 6.21 | |||
Description
General part information
68175 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
