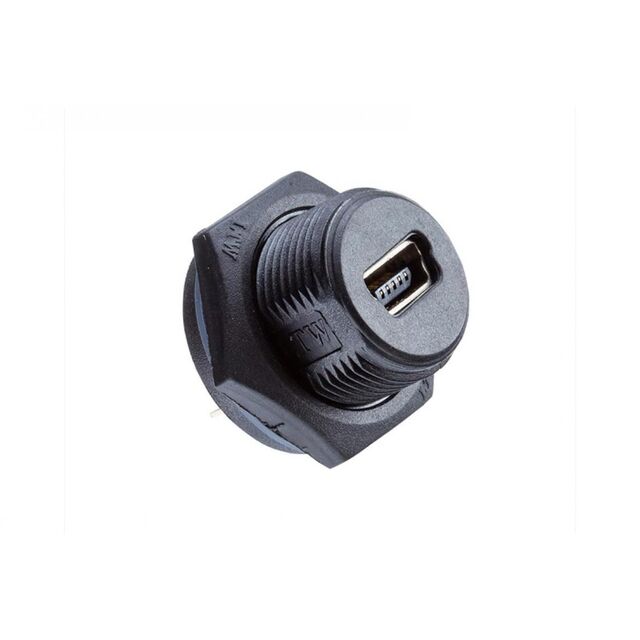

NUB-20PMFP-SC7001
ActiveAmphenol LTW
CONN RCP USB2.0 MINI B 5P PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NUB-20PMFP-SC7001
ActiveAmphenol LTW
CONN RCP USB2.0 MINI B 5P PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NUB-20PMFP-SC7001 |
|---|---|
| Connector Type | USB - mini B |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut; Vertical |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.69 | |
| 10 | $ 8.72 | |||
| 30 | $ 8.21 | |||
| 50 | $ 8.00 | |||
| 100 | $ 7.79 | |||
| 250 | $ 6.95 | |||
| 500 | $ 6.53 | |||
| 1000 | $ 5.77 | |||
Description
General part information
NUB-20PMFP Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole
