SS110LW
ActiveTaiwan Semiconductor Corporation

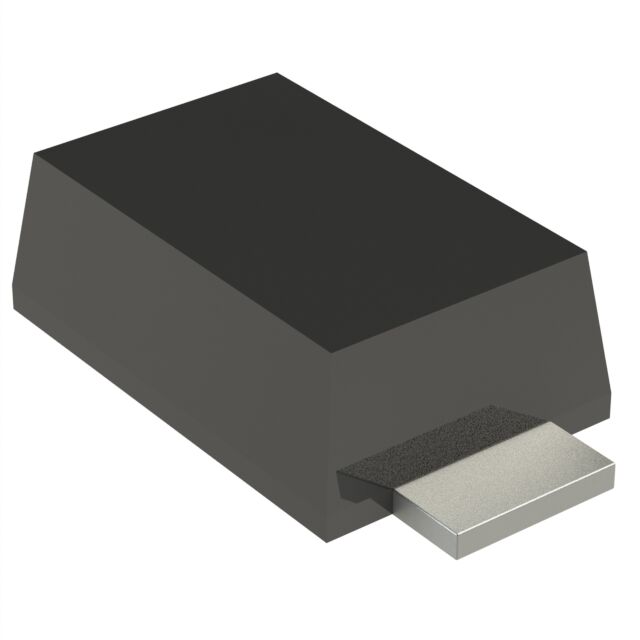

DIODE SCHOTTKY 100V 1A SOD123W
Deep-Dive with AI
Search across all available documentation for this part.
SS110LW
ActiveTaiwan Semiconductor Corporation
DIODE SCHOTTKY 100V 1A SOD123W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS110LW |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-123W |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123W |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV |
SS110 Series
| Part | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Average Rectified (Io) | Speed | Technology | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Mounting Type | Grade | Qualification | Capacitance @ Vr, F | Voltage - Forward (Vf) (Max) @ If [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Taiwan Semiconductor Corporation | -55 °C | 125 °C | 1 A | 200 mA 500 ns | Schottky | DO-214AC SMA | 100 V | DO-214AC (SMA) | 800 mV | 100 µA | Surface Mount | ||||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | DO-219AB | 100 V | Sub SMA | 800 mV | 50 µA | Surface Mount | Automotive | AEC-Q101 | ||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | SOD-123H | 100 V | SOD-123HE | 800 mV | 50 µA | Surface Mount | 80 pF | |||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | SOD-123W | 100 V | SOD-123W | 800 mV | 10 µA | Surface Mount | ||||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | SOD-123W | 100 V | SOD-123W | 800 mV | 10 µA | Surface Mount | ||||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | DO-221AC SMA Flat Leads | 100 V | Thin SMA | 10 µA | Surface Mount | Automotive | AEC-Q101 | 36 pF | 830 mV | |
Taiwan Semiconductor Corporation | -55 °C | 125 °C | 1 A | 200 mA 500 ns | Schottky | DO-214AC SMA | 100 V | DO-214AC (SMA) | 500 mV | 100 µA | Surface Mount | Automotive | AEC-Q101 | ||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | DO-214AC SMA | 100 V | DO-214AC (SMA) | 800 mV | 100 µA | Surface Mount | ||||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | DO-219AB | 100 V | Sub SMA | 800 mV | 50 µA | Surface Mount | ||||
Taiwan Semiconductor Corporation | -55 °C | 150 °C | 1 A | 200 mA 500 ns | Schottky | DO-219AB | 100 V | Sub SMA | 800 mV | 50 µA | Surface Mount | Automotive | AEC-Q101 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| 20000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
Description
General part information
SS110 Series
Diode 100 V 1A Surface Mount SOD-123W
