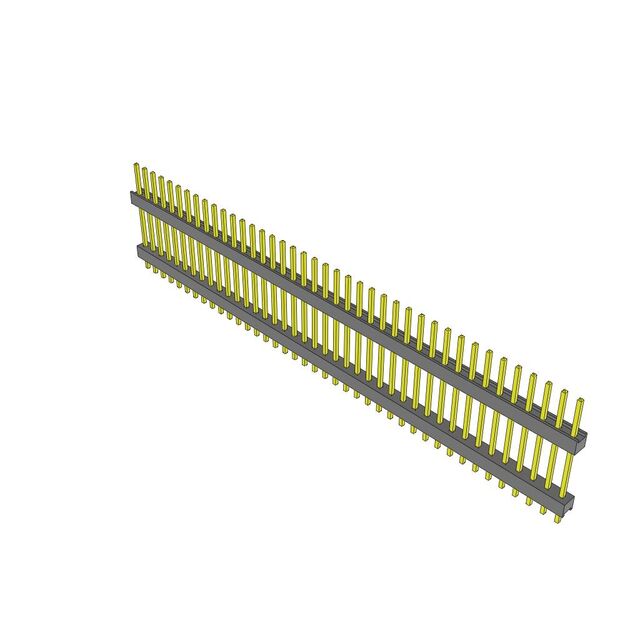

DW-40-11-G-S-580

Active

Samtec Inc.

CONN BOARD STACKER HDR 40 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 40 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	DW-40-11-G-S-580

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.93 in
Length - Overall Pin [x]	23.622 mm
Length - Post (Mating) [x]	6.096 mm
Length - Post (Mating) [x]	0.24 in
Length - Stack Height [x]	0.58 in
Length - Stack Height [x]	14.732 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	40
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Termination	Color	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Number of Rows	Number of Positions	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-40-11-G-S-580	Through Hole	0.25 Ám	10 Áin	0.93 in	23.622 mm	Gold	6.096 mm	0.24 in	2.54 mm	0.1 in	Solder	Black	0.58 in	14.732 mm	0.11 in	2.794 mm	1	40
Samtec Inc. DW-40-11-L-D-645	Through Hole	0.25 Ám	10 Áin	0.93 in	23.622 mm	Gold	4.445 mm	0.175 in	2.54 mm	0.1 in	Solder	Black			0.11 in	2.794 mm	2	80	0.1 in	2.54 mm	16.383 mm	0.645 in
Samtec Inc. DW-40-11-L-D-660	Through Hole	0.25 Ám	10 Áin	0.93 in	23.622 mm	Gold	4.064 mm	0.16 in	2.54 mm	0.1 in	Solder	Black	0.66 in	16.764 mm	0.11 in	2.794 mm	2	80	0.1 in	2.54 mm
Samtec Inc. DW-40-11-G-D-400	Through Hole	0.25 Ám	10 Áin	0.93 in	23.622 mm	Gold	10.668 mm	0.42 in	2.54 mm	0.1 in	Solder	Black	0.4 in	10.16 mm	0.11 in	2.794 mm	2	80	0.1 in	2.54 mm
Samtec Inc. DW-40-11-S-D-665	Through Hole	0.76 µm	30 µin	0.93 in	23.622 mm	Gold	3.937 mm	0.155 in	2.54 mm	0.1 in	Solder	Black	0.665 in	16.891 mm	0.11 in	2.794 mm	2	80	0.1 in	2.54 mm
Samtec Inc. DW-40-11-S-D-500	Through Hole	0.76 µm	30 µin	0.93 in	23.622 mm	Gold	8.128 mm	0.32 in	2.54 mm	0.1 in	Solder	Black	0.5 in	12.7 mm	0.11 in	2.794 mm	2	80	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
